Description
General part information

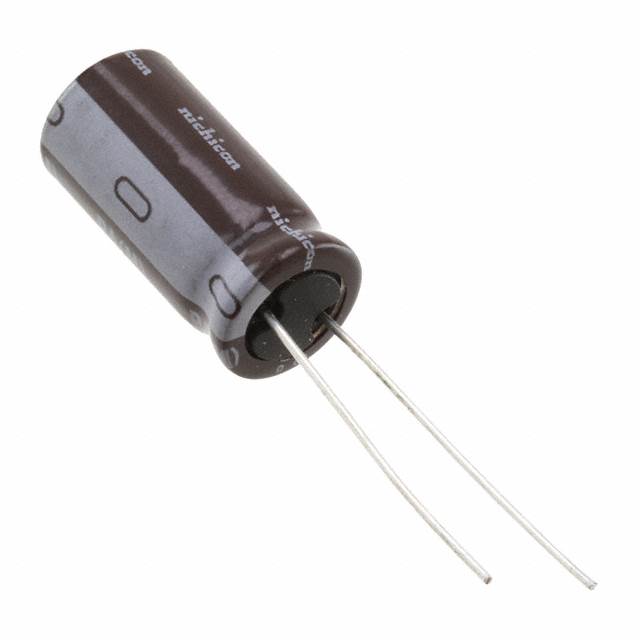

UPA1A182MPD
1800 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UPA1A182MPD |
|---|---|
| Applications | General Purpose |
| Capacitance | 1800 µF |
| Height - Seated (Max) | 0.866 in |
| Impedance | 35 mOhms |
| Lead Spacing | 0.197 in |
| Lifetime | 4000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 1.267 A, 1.49 A |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 10 V |
