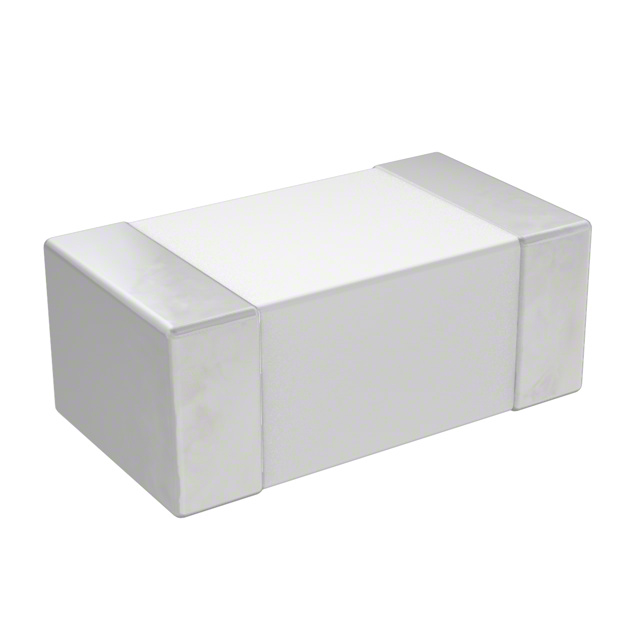

F1206A1R25FWTR
ActiveKYOCERA AVX
FUSE BOARD MNT 1.25A 32VDC 1206
F1206A1R25FWTR
ActiveKYOCERA AVX
FUSE BOARD MNT 1.25A 32VDC 1206
Description
General part information
F1206A1R25FWTR
1.25 A AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | F1206A1R25FWTR |
|---|---|
| Approval Agency | cUL, UL |
| Breaking Capacity | 50 A |
| Current Rating | 1.25 A |
| DC Cold Resistance | 150 mOhms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 0.009 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.047 in |
| Size / Dimension Length | 0.122 in |
| Size / Dimension Width | 0.063 in |
| Voltage Rating - DC | 32 V |
