P-11AAHL4
ObsoletePanasonic Energy
BATTERY PACK NICD 4.8V 1/3AA
P-11AAHL4
ObsoletePanasonic Energy
BATTERY PACK NICD 4.8V 1/3AA
Description
General part information
P-11AAHL4

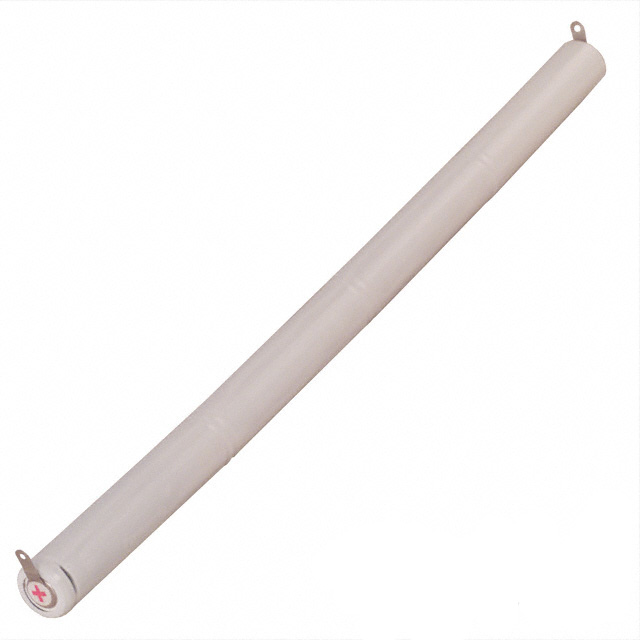

1/3AA 4.8 V Nickel Cadmium Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | P-11AAHL4 |
|---|---|
| Battery Cell Size | 1/3AA |
| Battery Chemistry | Nickel Cadmium |
| Capacity (Charge) | 110 mAh |
| Number of Cells | 4 |
| Rechargeability | Yes |
| Size / Dimension Height | 2.76 in |
| Size / Dimension Length | 0.57 in |
| Size / Dimension Width | 0.57 in |
| Structure | Front to Back |
| Structure Cells | 4 |
| Structure Rows | 1 |
| Termination Style | Solder Tab |
| Voltage - Rated | 4.8 V |
| Weight | 26.31 g |
