FMCA1630-36
ActiveFairview Microwave

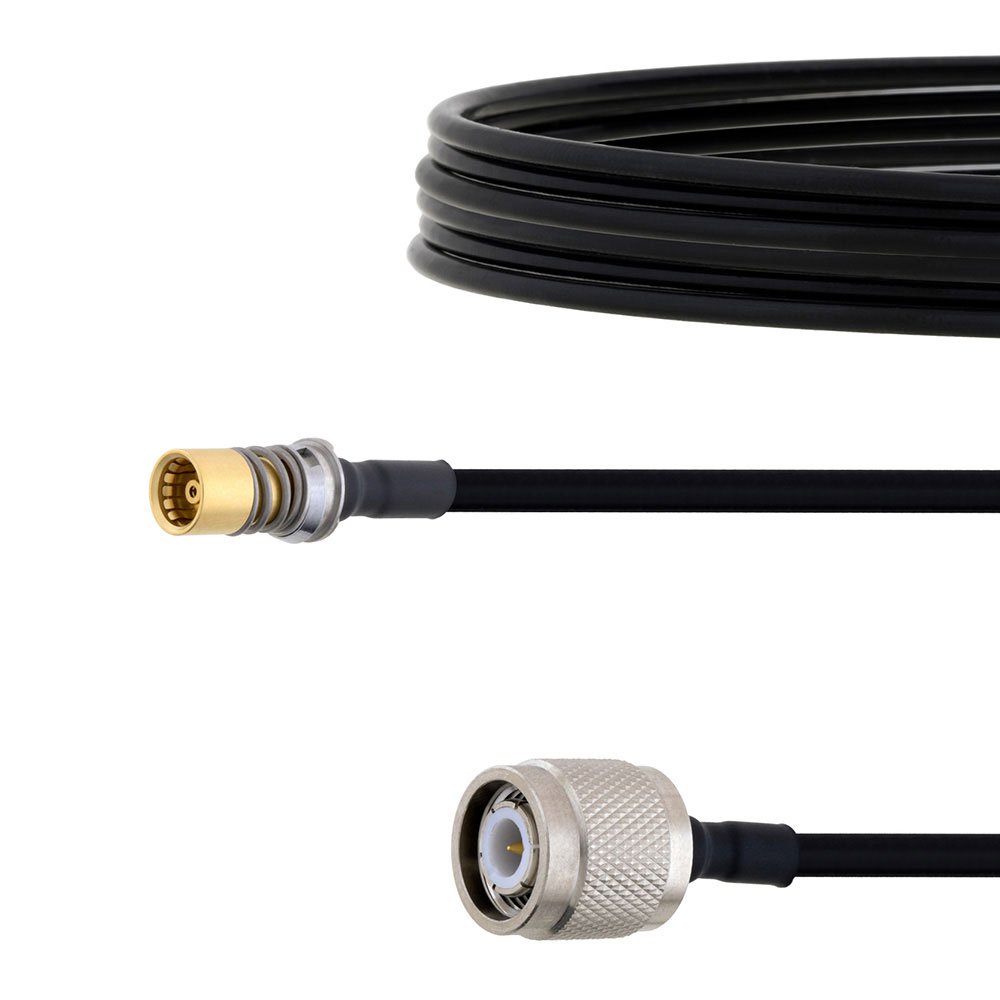

CBL ASSY BMAJACK-TNCPLUG 36
FMCA1630-36
ActiveFairview Microwave
CBL ASSY BMAJACK-TNCPLUG 36
Description
General part information
FMCA1630-36
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1630-36 |
|---|---|
| 1st Connector | BMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | Semi, Rigid Cable, Semi-Rigid Cable |
| Cable Type Size | 0.141 ", 0.141 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 36 in |
| Overall Impedance | 50 Ohms |
| Style | BMA, TNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
