LC1DT20BD
ActiveSCHNEIDER ELECTRIC
CONTACTOR, LC1D, DIN RAIL, 690 V, 4PST-NO, 4 POLE
LC1DT20BD
ActiveSCHNEIDER ELECTRIC
CONTACTOR, LC1D, DIN RAIL, 690 V, 4PST-NO, 4 POLE
Description
General part information
LC1DT20BD

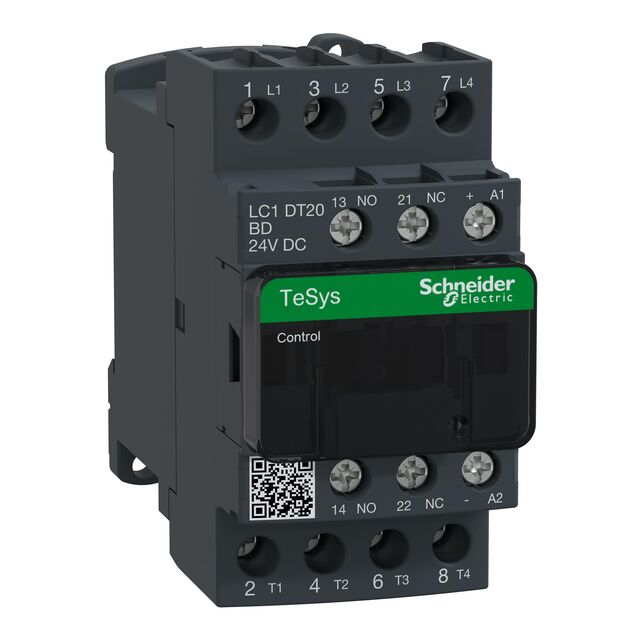

The LC1DT20BD is a TeSys D 4-pole Contactor with 4NO power pole and 1NO-1NC auxiliary contacts. TeSys D contactor is designed for perfect integration in control systems. It can be used to create motor starters for any type of application.
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1DT20BD |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | 4 Form A, PST-NO |
| Contact Rating (Current) | 20 A |
| Features | Diode, Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 V |
| Operate Time | 72.45 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 4 |
| Release Time | 24 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Screw Terminal |
