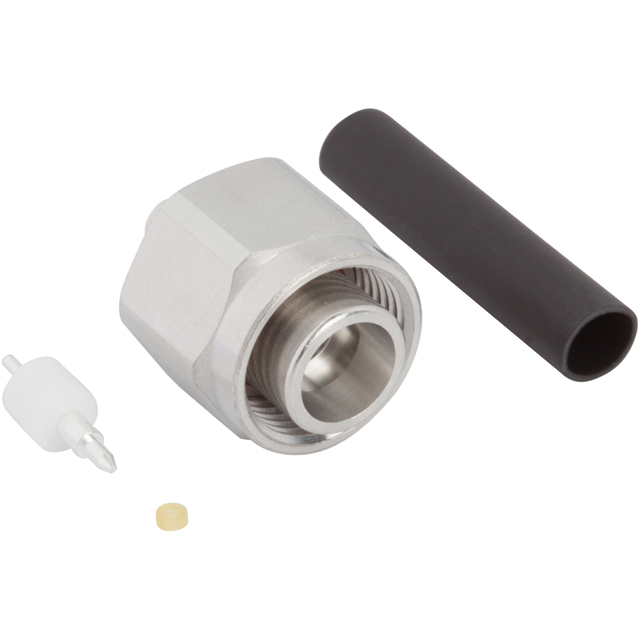

Specification	225-101P-52S

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-402
Cable Group Diameter (Semi Rigid)	0.141 in
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	2.2/5
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	6000 MHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	100 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder

- Series

Part	Fastening Type	Connector Type	Shield Termination	Mounting Feature	Number of Ports	Impedance	Contact Termination	Housing Color	Center Contact Material	Frequency - Max	Connector Style	Mounting Type	Dielectric Material	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Voltage Rating	Insertion Loss	Body Finish	Center Contact Plating	Color	Accessory Type	For Use With/Related Products	Includes Total Count	Includes	Ingress Protection	Cable Group	Impedance	Convert From (Adapter End)	Adapter Type	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Conversion Type	Ingress Protection Description	Ingress Protection IP Rating	Style	Adapter Series	Center Gender	Length - Overall	Ratings	Cable Diameter	2nd Connector	Type	Cable Type	Material	Features
McGill Microwave Systems 82-24	Threaded	Female Socket Recepture	Solder	Flange	1	50 Ohm	Solder Cup	Silver	Beryllium Copper	11 GHz	N Type	Panel Mount	Polytetrafluoroethylene (PTFE)	500 cycles	-65 °C	165 °C	Brass	1500 V	0.15 dB	Nickel	Silver
McGill Microwave Systems BHA-KIT											N Type									Nickel		Silver	Panel Mounting Hardware	N Type Jacks
McGill Microwave Systems 027-3	Snap-On	Male Pin Receptacle	Solder	Bulkhead Front Side Nut	1	50 Ohm	Solder Cup	Gold	Brass	6000 MHz	SMB	Panel Mount	Polytetrafluoroethylene (PTFE)	500 cycles	-65 °C	165 °C	Brass			Gold	Gold				3 pcs	Connector Lockwasher Nut
McGill Microwave Systems 82-312	Threaded	Male Pin Plug	Clamp		1	50 Ohm	Solder	Silver	Brass	11 GHz	N Type	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	500 cycles	-55 °C	85 °C	Brass	1500 V	0.15 dB	Nickel	Silver				8 pcs	Braid Clamp Clamp Connector Contact Gasket Insulators Washer	Weatherproof	213 214 225 302 393 87 8A 9 9A 9B RG-8
McGill Microwave Systems 83-1R	Threaded	Female Socket Recepture	Solder	Flange	1		Solder Cup	Silver	Brass	300 MHz	UHF	Panel Mount	Polybutylene Terephthalate (PBT) Polyester				Zinc Die Cast	500 V		Nickel	Silver								Non-Constant
McGill Microwave Systems 82-64	Threaded					50 Ohm			Beryllium Copper	11 GHz		Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	500 cycles	-65 °C	165 °C	Brass			Nickel	Silver									Male Pin N Plug	Plug to Jack	N Jack	Female Socket	Same Series	Dust Tight Waterproof	IP67	Right Angle	N to N	Female Male
McGill Microwave Systems QK733A-C																																								6.6 ft	OFNR	0.12 "	LC/UPC	Multimode OM4	Fiber Patch
McGill Microwave Systems 31093																						Black	Cap (Cover)	µCom Series Inline Receptacle																						Neoprene	Contains Strap
McGill Microwave Systems 83-1F	Threaded			Bulkhead					Brass	300 MHz		Panel Mount	Polystyrene (PS)		-65 °C	165 °C	Brass			Nickel	Silver								Non-Constant	Female Socket UHF Jack	Jack to Jack	UHF Jack	Female Socket	Same Series			Straight	UHF to UHF	Female
McGill Microwave Systems 83-1SP-15RFX	Threaded	Male Pin Plug	Solder		1		Solder	Silver	Brass	300 MHz	UHF	Free Hanging (In-Line)	Phenol Formaldehyde (Phenolic)				Brass	500 V		Nickel	Silver							213 214 225 302 393 87 8A 9 9A 9B RG-8	Non-Constant																		PL-259
