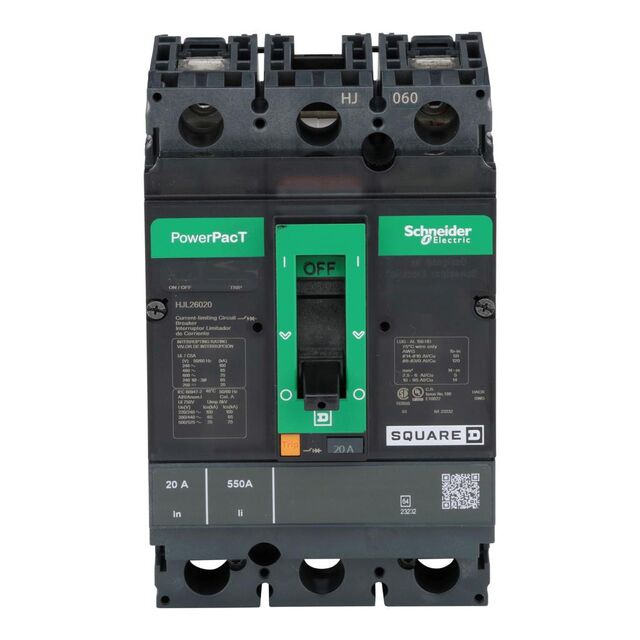

HJL26020
ActiveSCHNEIDER ELECTRIC
MOLDED CASE CIRCUIT BREAKER 600V
HJL26020
ActiveSCHNEIDER ELECTRIC
MOLDED CASE CIRCUIT BREAKER 600V
Description
General part information
HJL26020
Circuit Breaker Thermal Magnetic 20A 690 V AC DC Toggle Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HJL26020 |
|---|---|
| Actuator Type | Toggle |
| Approval Agency | CSA, IEC 60947-2, UL |
| Breaker Type | Thermal Magnetic |
| Current Rating | 20 A |
| Illumination | None |
| Mounting Type | Chassis Mount |
| Number of Poles | 2 |
| Voltage Rating - AC | 690 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
