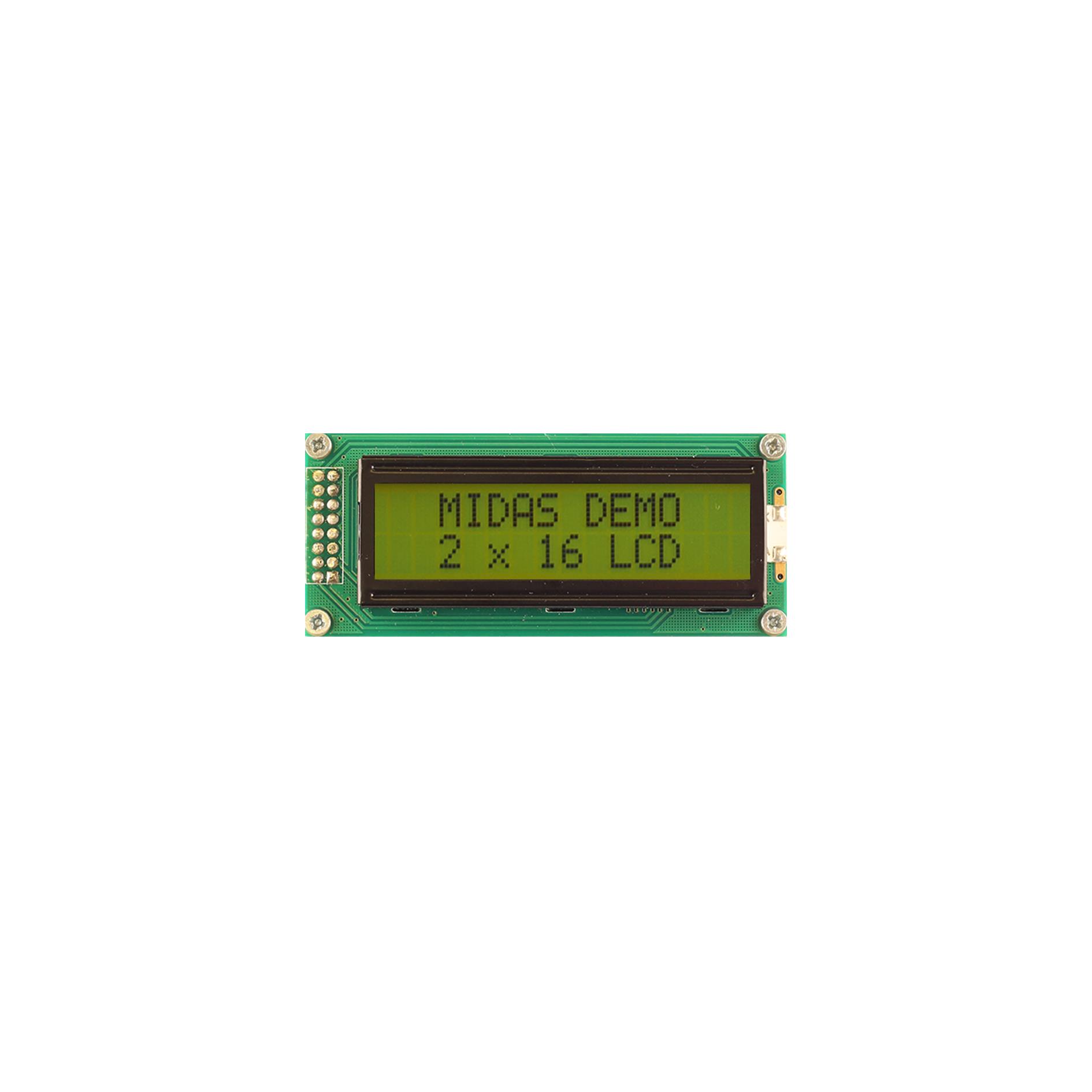

MC21605B6WD-SPTLY
Character Display Module Transflective 5 x 8 Dots LED - Yellow/Green Parallel 85.00mm x 36.00mm x 11.00mm
Technical Specifications
Parameters and characteristics for this part
| Specification | MC21605B6WD-SPTLY |
|---|---|
| Background Color | Yellow, Green |
| Backlight Color | Yellow, Green |
| Backlight Type | LED |
| Character Height | 5.23 mm |
| Character Height (Dots) | 8 Dots |
| Character Width | 3 mm |
| Character Width (Dots) | 5 Dots |
| Controller Type | ST7066U |
| Display Columns | 16 |
| Display Mode | Transflective |
| Display Rows | 2 |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size Height | 0.61 mm |
| Dot Size Width | 0.56 mm |
| Interface | Parallel |
| Number of Characters | 32 characters |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Outline Height | 11 mm |
| Outline Length | 85 mm |
| Outline Width | 36 mm |
| Text Color | Black |
| Viewing Area Length | 64.5 mm |
| Viewing Area Width | 16.4 mm |
| Voltage - Supply | 5 VDC |
