N846B-15M-24-P
ActiveEaton Tripp Lite
40/100/400G MULTIMODE 50/125 OM3
N846B-15M-24-P
ActiveEaton Tripp Lite
40/100/400G MULTIMODE 50/125 OM3
Description
General part information
N846B-15M-24-P

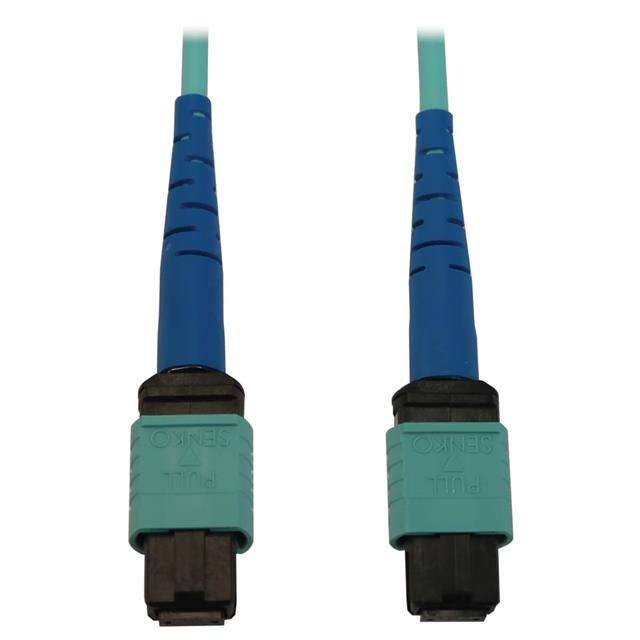

Cable Fiber Optic MTP To MTP 50/125 49.2' (15.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | N846B-15M-24-P |
|---|---|
| 1st Connector | MTP |
| 2nd Connector | MTP |
| Bend Radius | 10 mm |
| Cable Diameter | 0.12 " |
| Color - Cable | Aqua |
| Color - Connectors | Black, Aqua, Blue |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 50 µm |
| Insertion Loss | 0.35 dB |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 49.2 ft |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Type | Multimode, OM3 |
