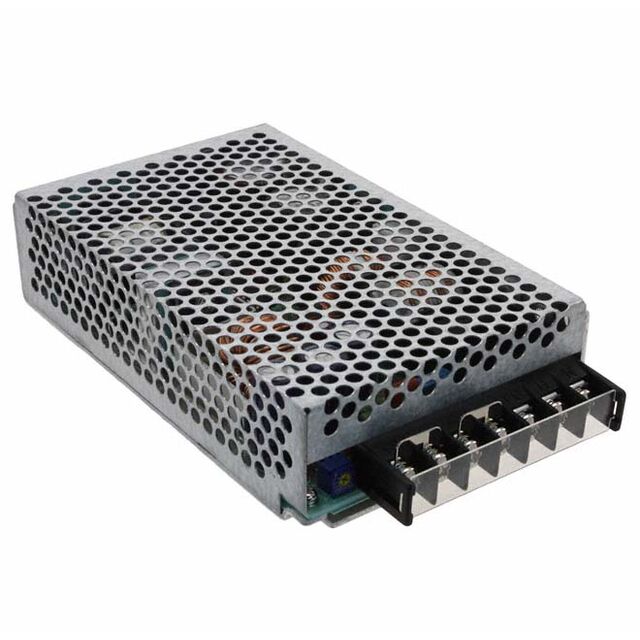

HK100A-15/A
ObsoleteTDK Corporation
AC/DC CONVERTER 15V 100W
HK100A-15/A
ObsoleteTDK Corporation
AC/DC CONVERTER 15V 100W
Description
General part information
HK100A-15/A
Enclosed AC DC Converters 1 Output 15V 85 ~ 132 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | HK100A-15/A |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE |
| Current - Output 1 | 7 A |
| Efficiency | 81 % |
| Features | Adjustable Output, Remote Sense, DC Input Capable |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 100 W |
| Size / Dimension Height | 2.83 in |
| Size / Dimension Length | 4.69 in |
| Size / Dimension Width | 1.38 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 132 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 15 V |
