1404198
ActivePhoenix Contact

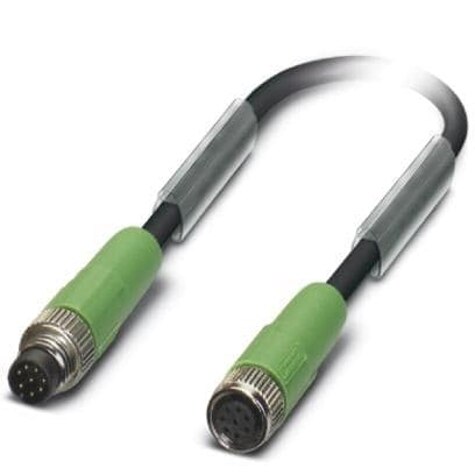

SENSOR CABLES / ACTUATOR CABLES SAC-8P-M 8MS 0,6-PUR/M 8FS
1404198
ActivePhoenix Contact
SENSOR CABLES / ACTUATOR CABLES SAC-8P-M 8MS 0,6-PUR/M 8FS
Description
General part information
1404198
Circular Cable Assembly Unshielded 1.97' (600.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1404198 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 8 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M8 |
| 1st Connector Type | Receptacle |
| 2nd Connector Gender | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 8 |
| 2nd Connector Number of Positions Loaded | All |
| 2nd Connector Orientation | A |
| 2nd Connector Shell Size - Insert (Code) | M8 |
| 2nd Connector Type | Plug |
| Assembly Configuration | Standard |
| Cable Material | Polyurethane (PUR) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP68, IP67, IP65 |
| Length | 1.97 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
