Description
General part information
14120717001000

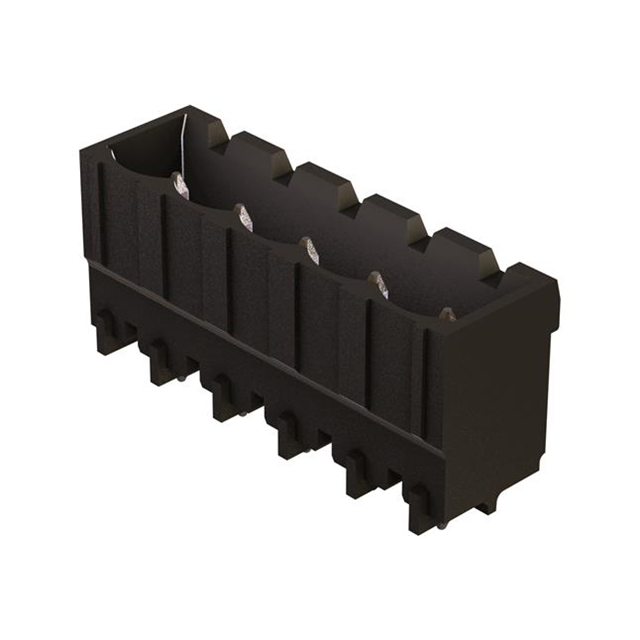

7 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 14120717001000 |
|---|---|
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.102 in |
| Current - UL | 15 A |
| Header Orientation | Vertical |
| Housing Material | PPA, PA, Polyphthalamide, Polyamide, Nylon |
| Insulation Height | 0.472 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 7 |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 5.08 mm |
| Positions Per Level | 7 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - UL | 300 V |
