B57550K0104A001
ActiveEPCOS - TDK Electronics
NTC THERMISTOR SENSOR FOR INDUST
B57550K0104A001
ActiveEPCOS - TDK Electronics
NTC THERMISTOR SENSOR FOR INDUST
Description
General part information
B57550K0104A001

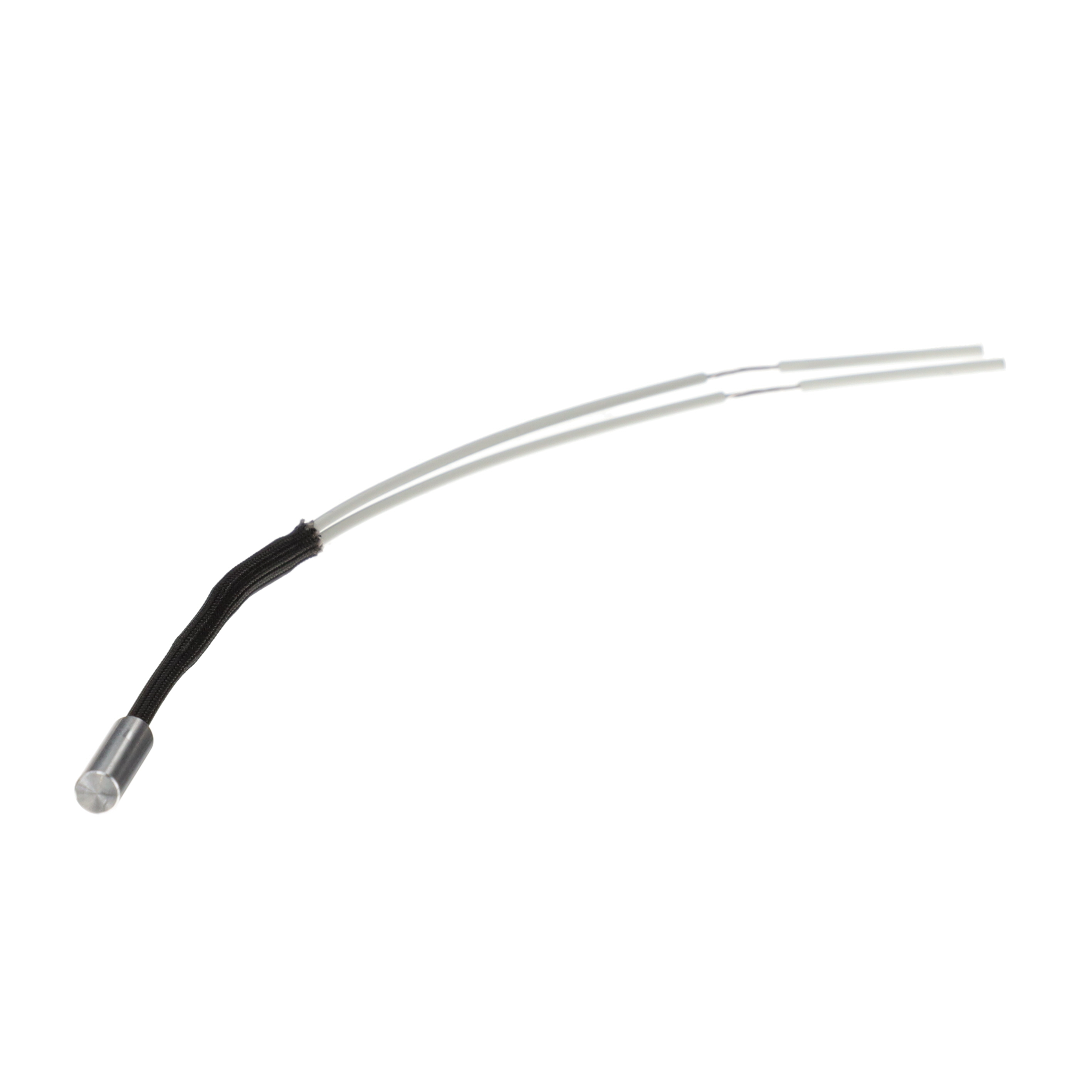

NTC Thermistor 100.8k Cylindrical Probe Assembly
Technical Specifications
Parameters and characteristics for this part
| Specification | B57550K0104A001 |
|---|---|
| B Value Tolerance | 1.5 % |
| Beta (B25/100) | 4092 K |
| Length - Lead Wire | 4.33 in |
| Mounting Type | Free Hanging |
| Operating Temperature (Max) | 230 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | Cylindrical Probe Assembly |
| Power - Max | 50 mW |
| Resistance (Ohms) | 100.8 kOhm |
| Resistance Tolerance (%) | 9 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
