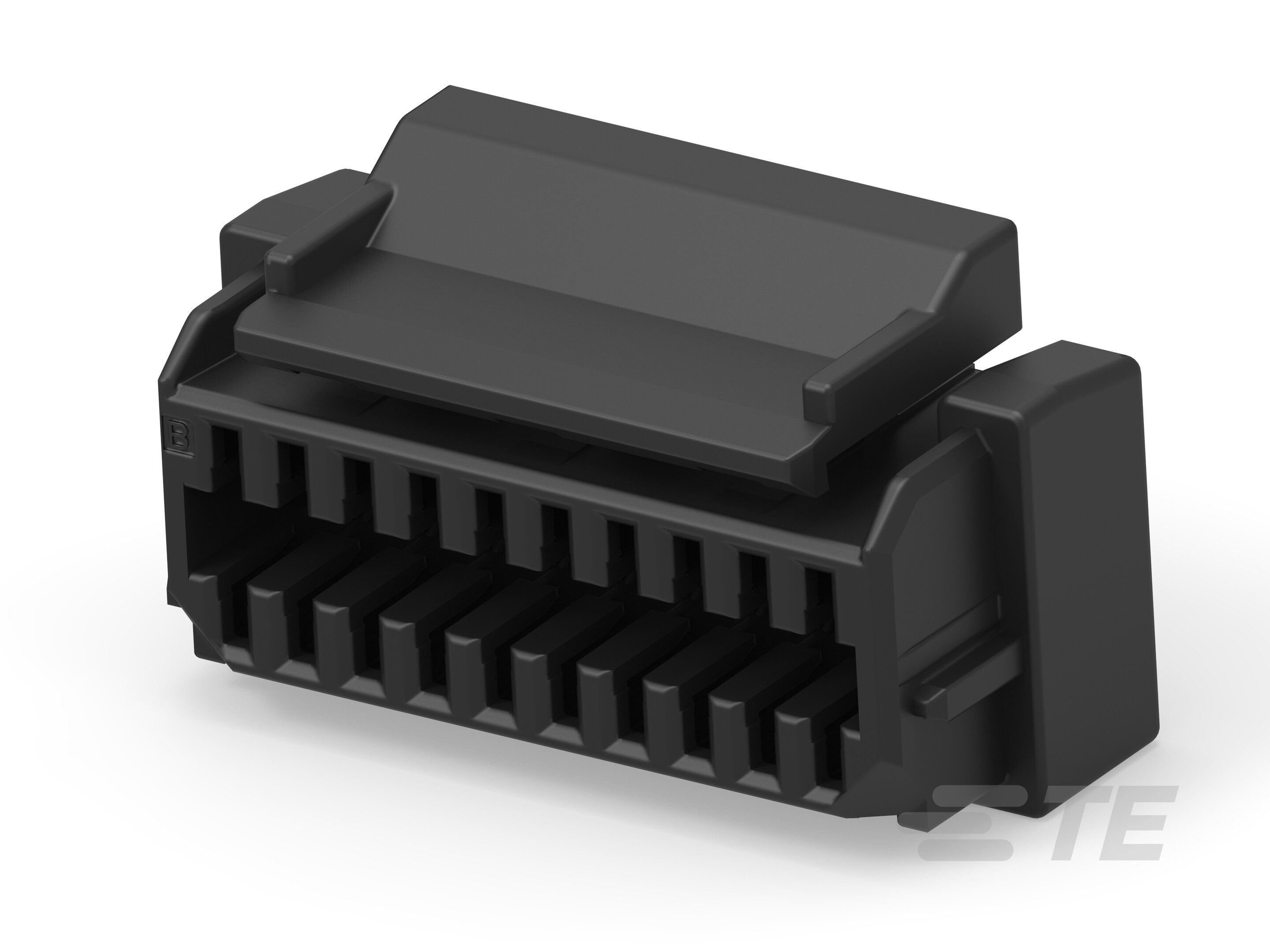

Specification	6-2456588-0

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Number of Positions	20
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.049 in

GRACE INERTIA 1.25 Series

...

Part	Number of Positions	Contact Type	Insulation Height	Contact Finish Thickness - Mating	Contact Finish - Mating	Style	Number of Positions Loaded	Voltage Rating	Current Rating	Insulation Material	Termination	Mounting Type	Shrouding	Number of Rows	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Contact Finish - Post	Contact Shape	Fastening Type	Features	Insulation Color	Contact Material	Pitch - Mating	Current Rating	Voltage Rating (Type)	Color	Contact Termination	Pitch
TE Connectivity AMP Connectors 1-2360540-0	10	Male Pin	0.232 in	39.4 µin	Tin	Board Cable/Wire	All	50 V	1 A	Nylon 4T Polyamide (PA4T)	Solder	Surface Mount	Shrouded - 4 Wall	1	Header	-40 °C	105 °C	UL94 V-0	Tin	Square	Push-Pull	Solder Retention	Natural	Brass	0.049 in
TE Connectivity AMP Connectors 2-2360538-8	8	Male Pin	0.193 in	39.4 µin	Tin	Board Cable/Wire	All	50 V	0 A	Nylon 4T Polyamide (PA4T)	Solder	Right Angle Surface Mount	Shrouded - 4 Wall	1	Header	-40 °C	105 °C	UL94 V-0	Tin	Square	Push-Pull	Solder Retention	Black	Brass	0.049 in	Varies by Wire Gauge	DC
TE Connectivity AMP Connectors 2371404-2	2	Female Socket								Nylon Polyamide (PA)		Free Hanging (In-Line)		1	Plug	-40 °C	105 °C				Latch Lock							Natural	Crimp	0.049 in
TE Connectivity AMP Connectors 2371404-3	3	Female Socket								Nylon Polyamide (PA)		Free Hanging (In-Line)		1	Plug	-40 °C	105 °C				Latch Lock							Natural	Crimp	0.049 in
TE Connectivity AMP Connectors 2360540-5	5	Male Pin	0.232 in	39.4 µin	Tin	Board Cable/Wire	All	50 V	2.2 A	Nylon 4T Polyamide (PA4T)	Solder	Surface Mount	Shrouded - 4 Wall	1	Header	-40 °C	105 °C	UL94 V-0	Tin	Square	Latch Holder	Solder Retention	Natural	Brass	0.049 in		DC
TE Connectivity AMP Connectors 1-2360540-7	17	Male Pin	0.232 in			Board Cable/Wire	All	50 V	0 A	Nylon 4T Polyamide (PA4T)	Solder	Surface Mount	Shrouded - 4 Wall	1	Header	-40 °C	105 °C	UL94 V-0	Tin	Square	Friction Lock	Pick and Place Solder Retention	Natural	Brass	0.049 in	Varies by Wire Gauge	DC
TE Connectivity AMP Connectors 2-2371404-2	2	Female Socket								Nylon Polyamide (PA)		Free Hanging (In-Line)		1	Plug	-40 °C	105 °C				Latch Lock							Black	Crimp	0.049 in
TE Connectivity AMP Connectors 2360540-4	4	Male Pin	0.232 in	39.4 µin	Tin	Board Cable/Wire	All	50 V	2.2 A	Nylon 4T Polyamide (PA4T)	Solder	Surface Mount	Shrouded - 4 Wall	1	Header	-40 °C	105 °C	UL94 V-0	Tin	Square	Latch Holder	Solder Retention	Natural	Brass	0.049 in		DC
TE Connectivity AMP Connectors 1-2371404-5	15	Female Socket								Nylon Polyamide (PA)		Free Hanging (In-Line)		1	Plug	-40 °C	105 °C				Latch Lock							Natural	Crimp	0.049 in
TE Connectivity AMP Connectors 2-2371404-5	5	Female Socket								Nylon Polyamide (PA)		Free Hanging (In-Line)		1	Plug	-40 °C	105 °C				Latch Lock							Black	Crimp	0.049 in
