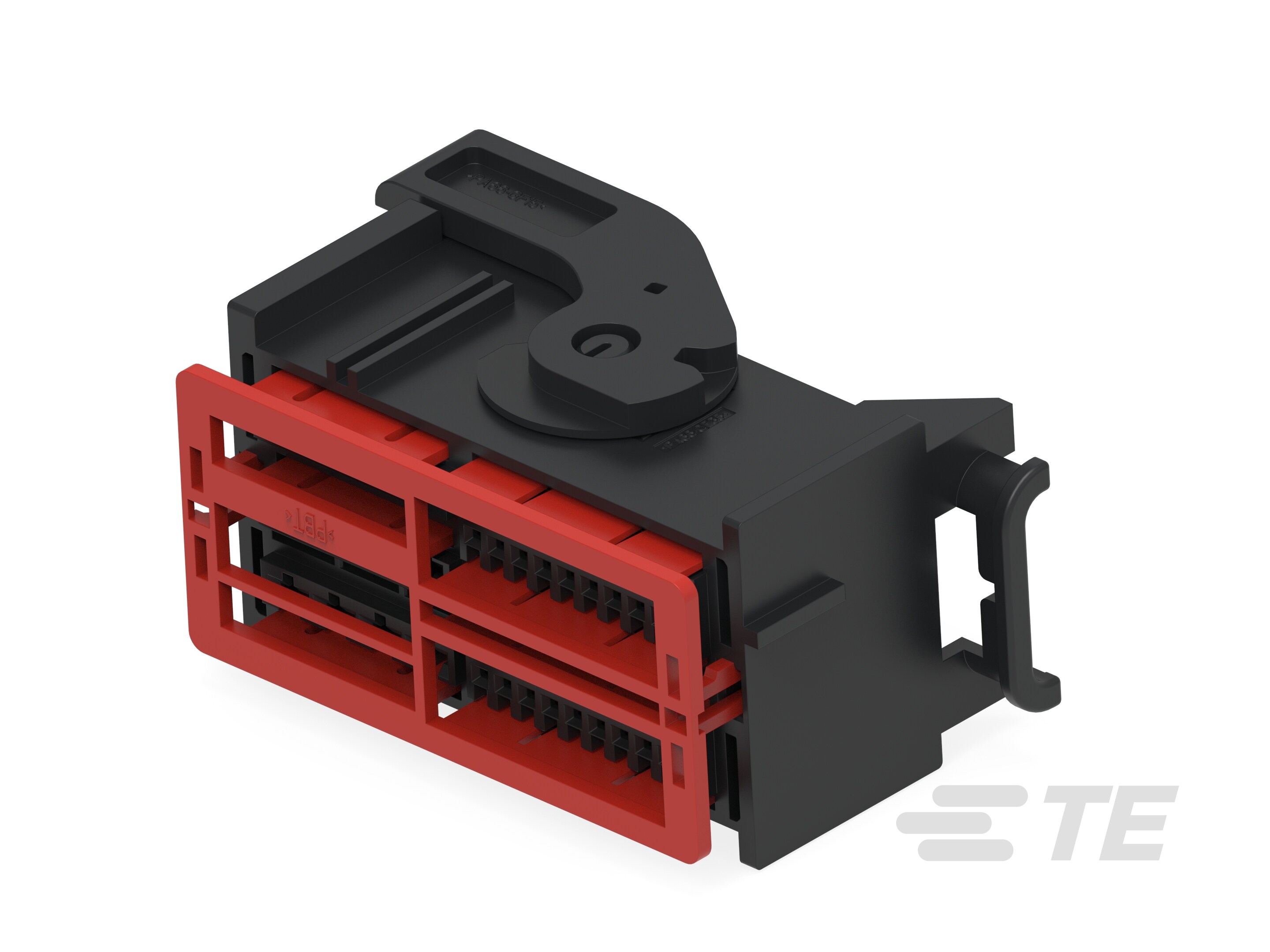

776932-4
ActiveTE Connectivity AMP Connectors
52 POS PLUG, 0.64 AND 2.80MM
776932-4
ActiveTE Connectivity AMP Connectors
52 POS PLUG, 0.64 AND 2.80MM
Description
General part information
776932-4
52 Position Housing, Housing for Female Terminals, Wire-to-Board, 2.54 mm / 5 mm [.1 in / .196 in] Centerline, Black, Wire & Cable, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 776932-4 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Lever Lock |
| Features | Terminal Position Lock (TPA) |
| Insulation Material | Nylon, Glass Filled, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 52 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
