1986371-3
ActiveTE Connectivity AMP Connectors

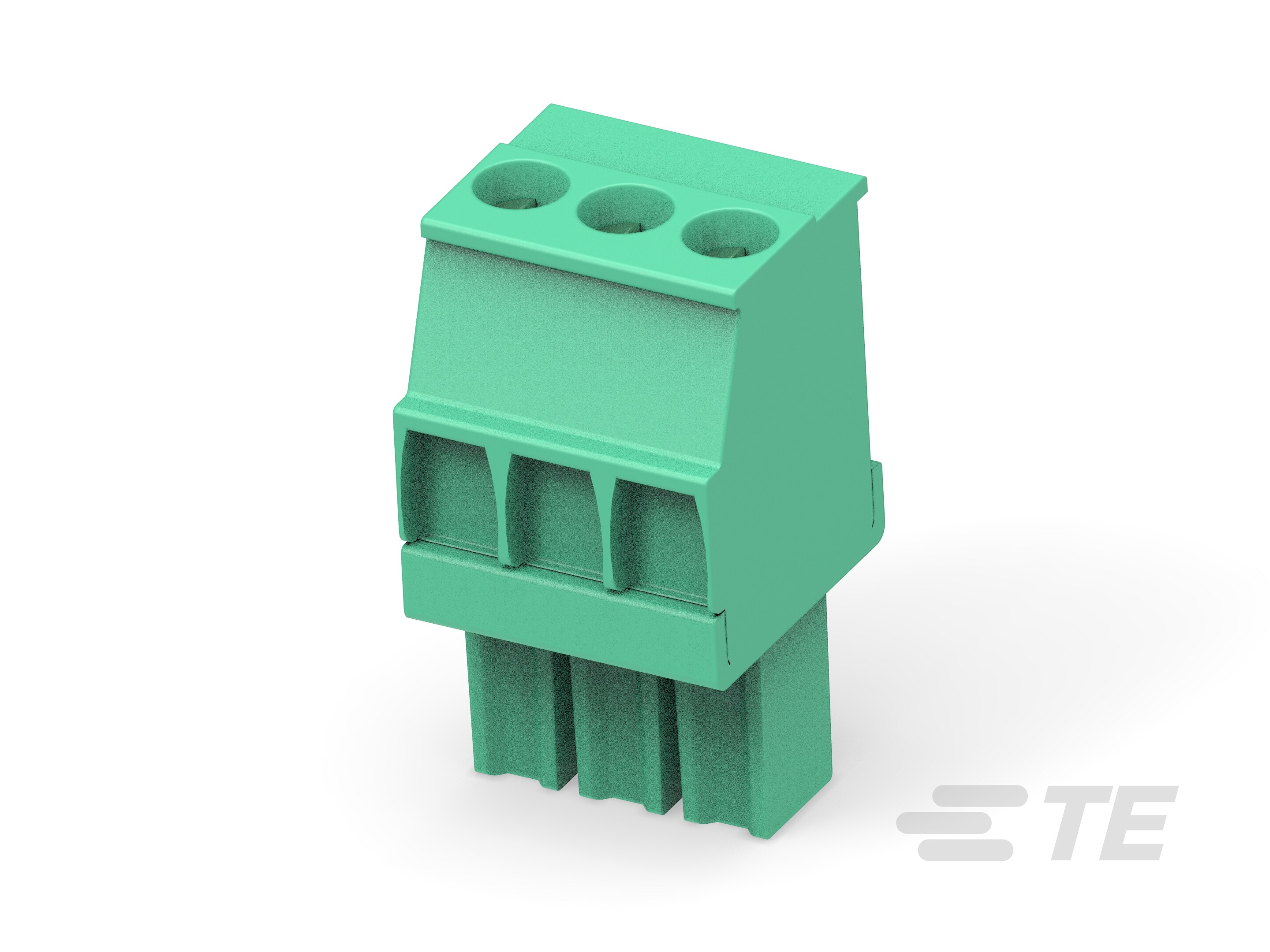

CONN EUROSTYLE BLOCK F 3 POS 3.5MM SCREW ST CABLE MOUNT 11A/CONTACT
1986371-3
ActiveTE Connectivity AMP Connectors
CONN EUROSTYLE BLOCK F 3 POS 3.5MM SCREW ST CABLE MOUNT 11A/CONTACT
Description
General part information
1986371-3
3 Position PCB Terminal Block, Plug, Wire-to-Board, 3.5 mm [.138 in] Centerline, 1 Row, 90° Wire Entry Angle, 30 – 14 AWG, .05 – 2 mm² Wire, 300 VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | 1986371-3 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - UL | 11 A |
| Features | Side Stacking |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.138 in |
| Plug Wire Entry Angle | 270 ° |
| Positions Per Level | 3 |
| Termination Style | Screw - Rising Cage Clamp |
| Type | Female Sockets, Plug |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 30 AWG |
| Wire Gauge or Range - AWG (Min) | 14 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.05 mm² |
