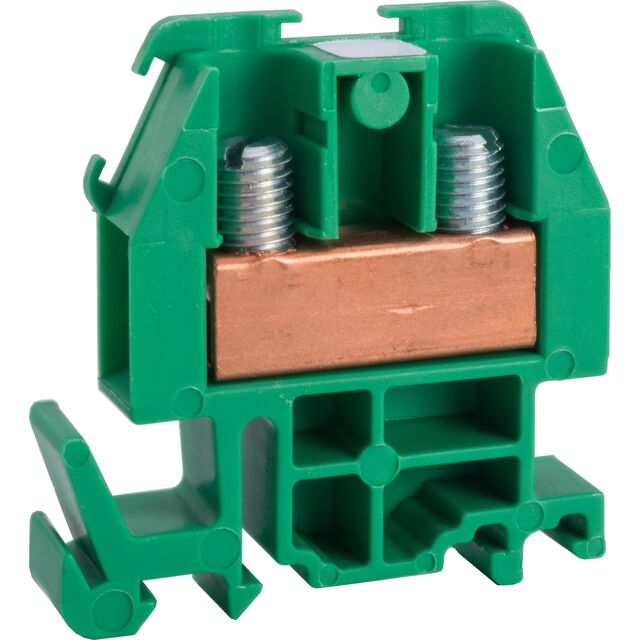

9080GRG6
ActiveSCHNEIDER ELECTRIC
TERMINAL BLOCK 600V 60AMP NEMA +
9080GRG6
ActiveSCHNEIDER ELECTRIC
TERMINAL BLOCK 600V 60AMP NEMA +
Description
General part information
9080GRG6
Terminal Block Connector 2 Position Feed Through Green 8-22 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 9080GRG6 |
|---|---|
| Color | Green |
| Current - UL | 60 A |
| Material - Insulation | Polyamide, PA, Nylon |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Terminal Width | 8 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 22 AWG |
| Wire Gauge or Range - AWG (Min) | 8 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
