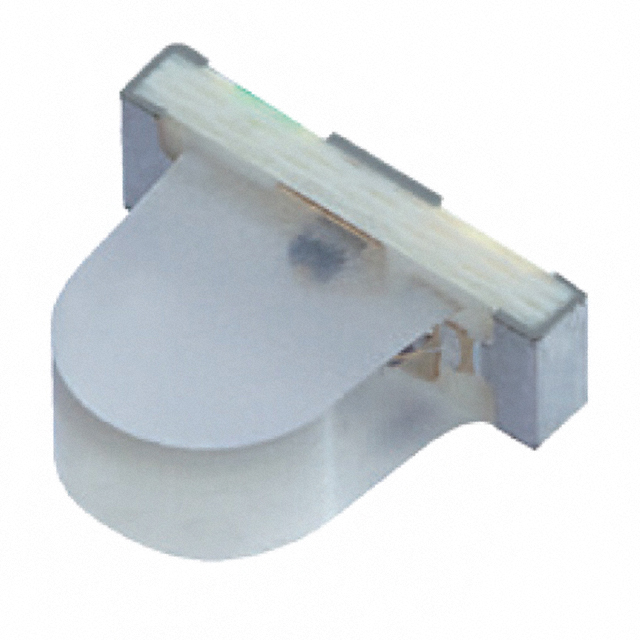

XZTNI56W-1
ActiveSunLED
EMITTER IR 940NM 50MA SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZTNI56W-1
ActiveSunLED
EMITTER IR 940NM 50MA SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZTNI56W-1 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 50 mA |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Side View |
| Package / Case | 2-SMD, No Lead |
| Radiant Intensity (Ie) Min @ If [Min] | 1.2 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 30 ° |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.16 | |||
| 1000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.45 | ||
| 10 | $ 0.28 | |||
| 100 | $ 0.16 | |||
| 1000 | $ 0.13 | |||
| Tape & Reel (TR) | 2000 | $ 0.08 | ||
Description
General part information
XZTNI56 Series
Infrared (IR) Emitter 940nm 1.2V 50mA 1.2mW/sr @ 20mA 30° 2-SMD, No Lead
