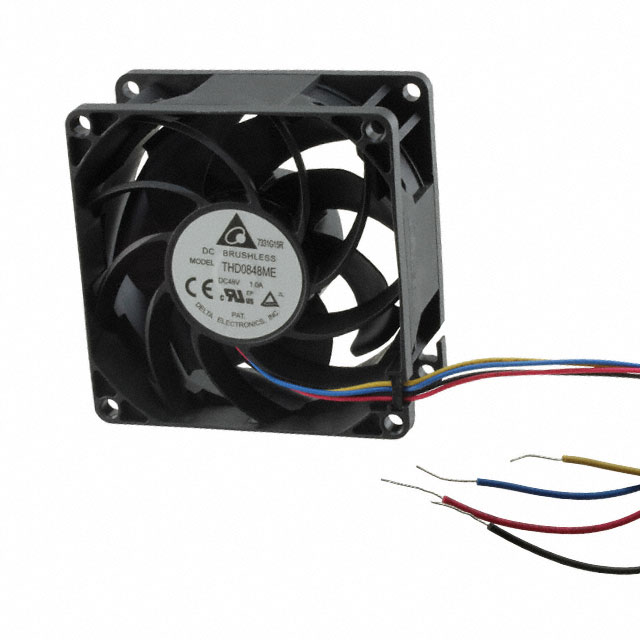

THD0848ME

Active

Delta Electronics

FAN AXIAL 80X38MM 48VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 80X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	THD0848ME

Air Flow	3.58 mł/min
Air Flow	128 CFM
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	0.55 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	60 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	26.4 W
RPM	9500 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	1.476 in H2O
Static Pressure	367.6 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	75 VDC
Voltage Range [Min]	36 VDC
Weight	160.12 g
Weight	0.353 lb
Width [y]	38 mm

FAN AXIAL 80X38MM 48VDC WIRE

Part	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Termination	Air Flow	Air Flow	Noise	RPM	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Voltage - Rated [custom]	Material - Frame	Fan Type	Width [y]	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Weight	Weight	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Features	Static Pressure	Static Pressure
Delta Electronics THD0848ME	26.4 W	70 °C	70 °C	-10 °C	-10 °C	4 Wire Leads	3.58 mł/min	128 CFM	60 dB(A)	9500 RPM	80 mm	80 mm	CE, cURus, TUV	48 VDC	Plastic	Tubeaxial	38 mm	Ball	75 VDC	36 VDC	160.12 g	0.353 lb	70000 Hrs	Plastic	0.55 A	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	1.476 in H2O	367.6 Pa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Square - 80mm L x 80mm H Ball 128.0 CFM (3.58m³/min) 4 Wire Leads
