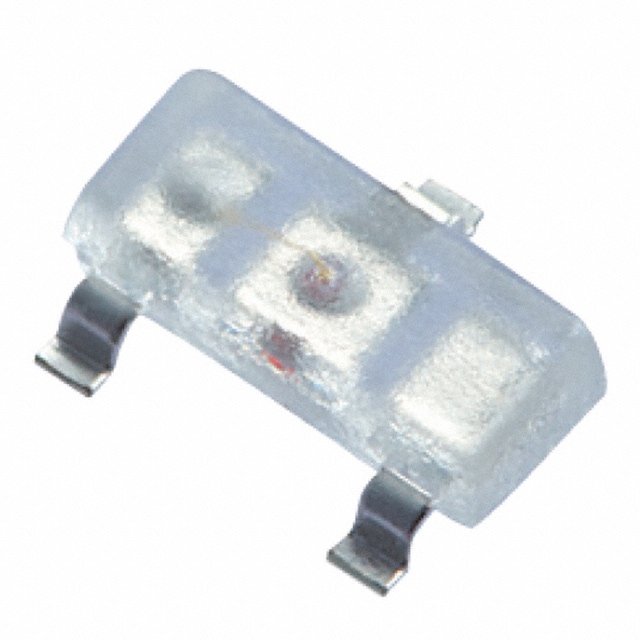

XZUR48WA
ActiveSunLED
LED RED CLEAR SOT23-3 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZUR48WA
ActiveSunLED
LED RED CLEAR SOT23-3 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZUR48WA |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 1.2 mm |
| Lens Color | Colorless |
| Lens Size [x] | 3 mm |
| Lens Size [y] | 1.3 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 4.8 mcd |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 1.3 mm |
| Supplier Device Package | SOT-23-3 |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 617 nm |
| Wavelength - Peak | 627 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.11 | |
| 6000 | $ 0.10 | |||
| 10000 | $ 0.10 | |||
| 50000 | $ 0.09 | |||
| 100000 | $ 0.09 | |||
Description
General part information
XZUR48WA
Red 617nm LED Indication - Discrete 2V TO-236-3, SC-59, SOT-23-3
