FM51OM1033
ActiveFairview Microwave
ANTENNA TYPE N JACK 698 MHZ-960
FM51OM1033
ActiveFairview Microwave
ANTENNA TYPE N JACK 698 MHZ-960
Description
General part information
FM51OM1033

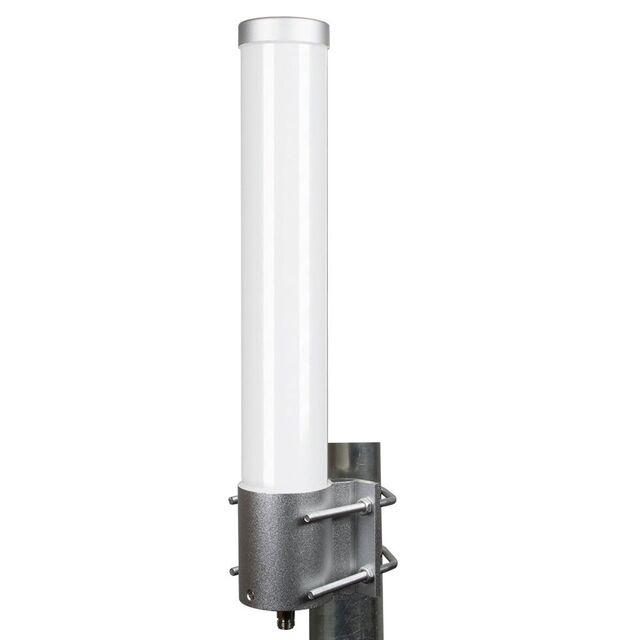

RF ANTENNA 5G, LTE Whip, Straight N Type Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FM51OM1033 |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | 5G, LTE |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 829 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 960 MHz |
| Frequency Range (Min) | 698 MHz |
| Gain | 6 dBi |
| Height (Max) | 19.6 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max | 50 VA |
| RF Family/Standard | Cellular |
| Termination | N Type Female |
| VSWR | 1.5 |
