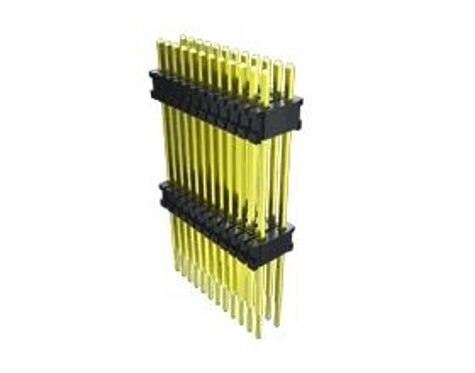

Specification	DWM-07-52-L-S-210

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	10 µin
Length - Overall Pin	0.425 in
Length - Post (Mating)	0.095 in
Length - Stack Height	0.21 in
Length - Tail	0.12 in
Mounting Type	Through Hole
Number of Positions	7
Number of Rows	1
Pitch	0.05 in
Termination	Solder

DWM Series

...

Part	Length - Overall Pin	Color	Termination	Number of Rows	Number of Positions	Contact Finish - Post (Mating)	Pitch	Length - Stack Height	Length - Tail	Length - Post (Mating)	Contact Finish Thickness - Post (Mating)	Mounting Type	Row Spacing
Samtec Inc. DWM-04-60-S-S-625	0.825 in	Black	Solder	1	4	Gold	0.05 in	0.625 in	0.12 in	0.08 in	30 µin	Through Hole
Samtec Inc. DWM-04-61-S-S-500	1.05 in	Black	Solder	1	4	Gold	0.05 in	0.5 in	0.12 in	0.43 in	30 µin	Through Hole
Samtec Inc. DWM-04-53-S-S-270	0.505 in	Black	Solder	1	4	Gold	0.05 in	0.27 in	0.12 in	0.115 in	30 µin	Through Hole
Samtec Inc. DWM-04-58-G-S-420	0.705 in	Black	Solder	1	4	Gold	0.05 in	0.42 in	0.12 in	0.165 in	10 µin	Through Hole
Samtec Inc. DWM-04-61-G-D-870	1.05 in	Black	Solder	2	8	Gold	0.05 in	0.87 in	0.12 in	0.06 in	10 µin	Through Hole	0.1 in
Samtec Inc. DWM-04-53-G-S-280	0.505 in	Black	Solder	1	4	Gold	0.05 in	0.28 in	0.12 in	0.105 in	10 µin	Through Hole
Samtec Inc. DWM-04-53-G-S-300	0.505 in	Black	Solder	1	4	Gold	0.05 in	0.3 in	0.12 in	0.085 in	10 µin	Through Hole
Samtec Inc. DWM-04-53-G-S-315	0.505 in	Black	Solder	1	4	Gold	0.05 in	0.315 in	0.12 in	0.07 in	10 µin	Through Hole
Samtec Inc. DWM-04-54-L-S-350	0.555 in	Black	Solder	1	4	Gold	0.05 in	0.35 in	0.12 in	0.085 in	10 µin	Through Hole
Samtec Inc. DWM-04-61-G-S-800	1.05 in	Black	Solder	1	4	Gold	0.05 in	0.8 in	0.12 in	0.13 in	10 µin	Through Hole
