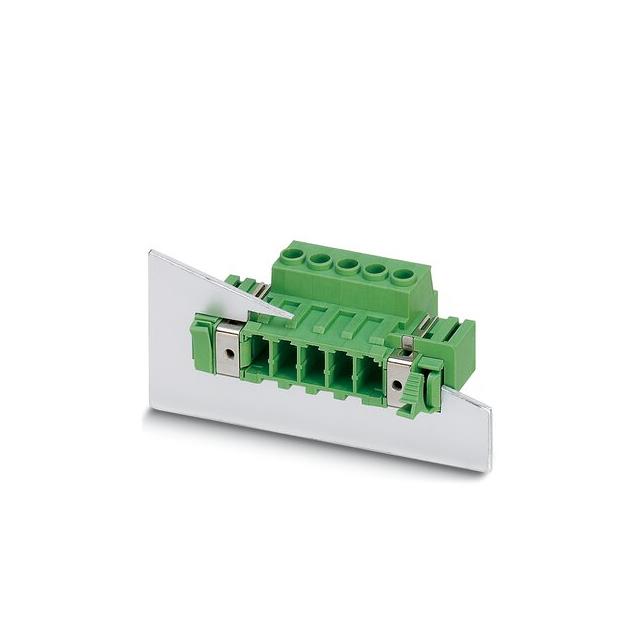

Specification	1716674

Color	Green
Current - UL	41 A
Features	Shield Connection Front Side, Threaded Mating Lock
Front Panel Wire Connection (Method)	Header, Male Pins
Number of Levels	1
Panel Mount Type	2 Piece, Snap Lock - Front Flange
Panel Thickness (Max)	0.118 in
Panel Thickness (Min)	0.039 in
Pitch	0.3 in
Positions Per Level	8
Rear Panel Wire Connection	Bolt, Screw Clamp
Rear Panel Wire Entry Orientation	Parallel to Panel
Voltage - UL	600 V
Width	3.763 in
Wire Gauge (AWG) (Max)	24 AWG
Wire Gauge (AWG) (Min)	8 AWG
