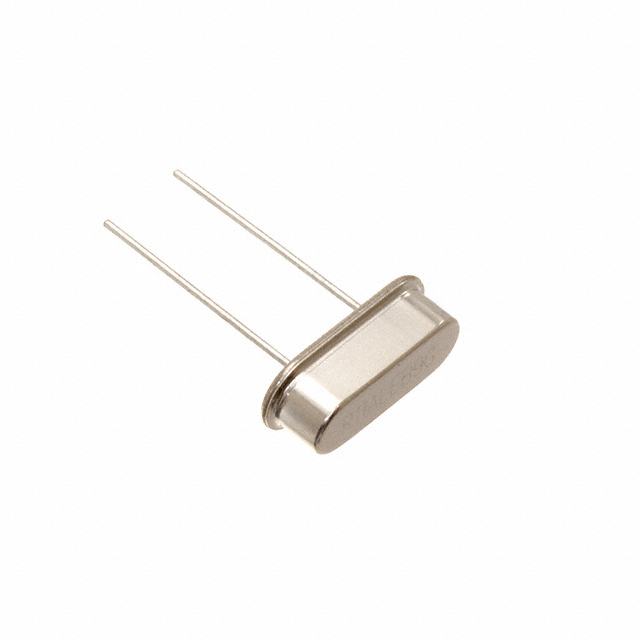

AS-25.000-20-F
ActiveRaltron Electronics
CRYSTAL 25.0000MHZ 20PF TH
AS-25.000-20-F
ActiveRaltron Electronics
CRYSTAL 25.0000MHZ 20PF TH
Description
General part information
AS-25.000-20-F
25 MHz ±30ppm Crystal 20pF 40 Ohms HC-49/US
Technical Specifications
Parameters and characteristics for this part
| Specification | AS-25.000-20-F |
|---|---|
| ESR (Equivalent Series Resistance) | 40 Ohm |
| Frequency | 25 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.138 in |
| Load Capacitance | 20 pF |
| Mounting Type | Through Hole |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | HC-49/US |
| Size / Dimension Length | 0.447 in |
| Size / Dimension Width | 0.197 in |
| Type | MHz Crystal |
