TPA511GLFS
ObsoleteLITTELFUSE
SWITCH NAVIGATION DGTL 50MA 24V
TPA511GLFS
ObsoleteLITTELFUSE
SWITCH NAVIGATION DGTL 50MA 24V
Description
General part information

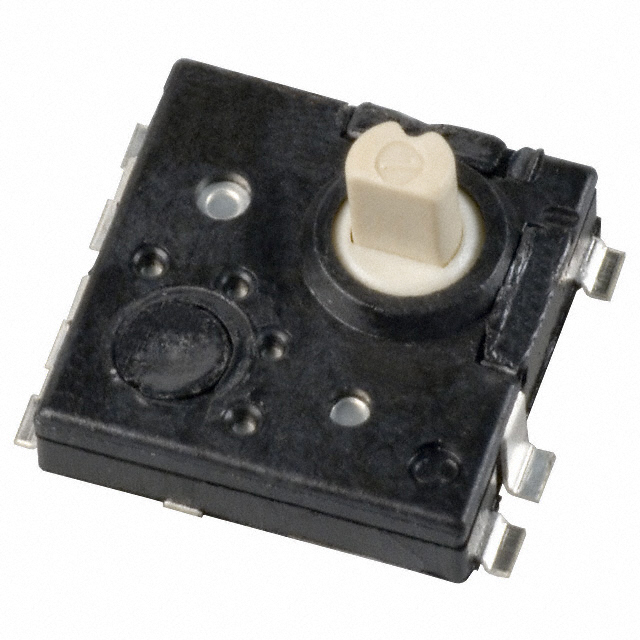

TPA511GLFS
Navigation Switch, 2 - Axis Digital (Mechanical Switch) Output
Technical Specifications
Parameters and characteristics for this part
| Specification | TPA511GLFS |
|---|---|
| Actuator Type | Plunger for Cap |
| Axis Count | 2 Axis |
| Contact Finish | Silver |
| Current Rating | 50 mA |
| Mechanical Life (Cycles) | 200000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force (Max) | 400 gf |
| Operating Force (Min) | 180 gf |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Digital (Mechanical Switch) |
| Switch Function | 4-Way Directional, Center Select |
| Termination Style | Gull Wing |
| Type | Navigation Switch, 2 - Axis |
| Voltage Rating - DC | 24 V |
