EST0645T101MDGA
ActiveTaiyo Yuden
FIXED IND 100UH 850MA 320MOHM SM
EST0645T101MDGA
ActiveTaiyo Yuden
FIXED IND 100UH 850MA 320MOHM SM
Description
General part information
EST0645T101MDGA

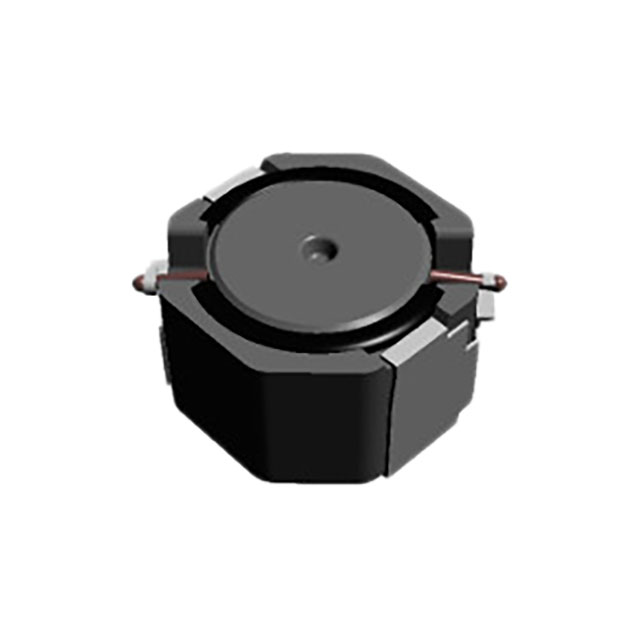

100 µH Shielded Drum Core, Wirewound Inductor 850 mA 320mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | EST0645T101MDGA |
|---|---|
| Current - Saturation (Isat) | 0.55 mA |
| Current Rating | 0.85 A |
| DC Resistance (DCR) | 320 mOhm |
| Height - Seated (Max) | 0.177 in |
| Inductance | 100 µH |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.248 in |
| Size / Dimension Width | 0.24 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
