Description
General part information

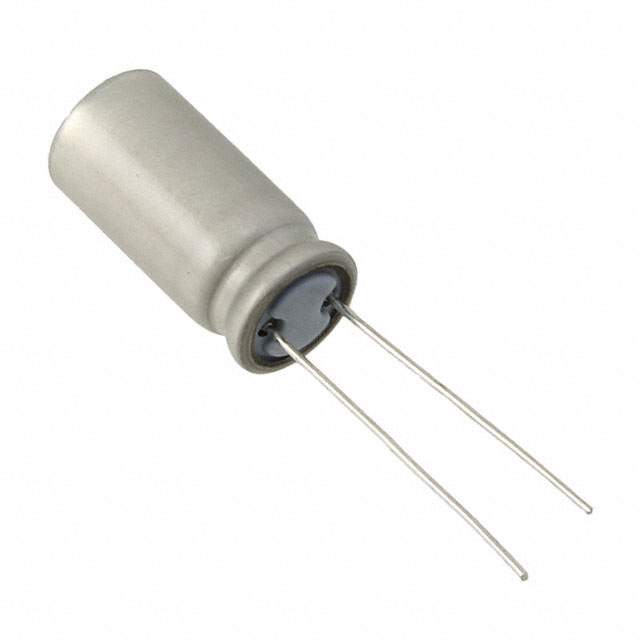

UBX2A470MPL
47 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UBX2A470MPL |
|---|---|
| Applications | Automotive |
| Capacitance | 47 µF |
| Height - Seated (Max) | 0.846 in |
| Lead Spacing | 0.197 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 320 mA, 640 mA |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 100 VAC/DC |
