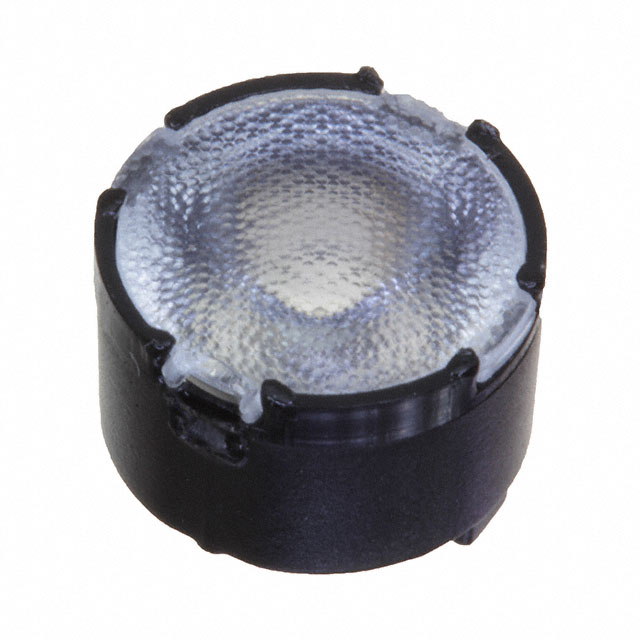

FP16611_LISA3CSP-WWW-PIN

Active

LEDIL

ASSEMBLY 1 POS MM (D)/ PE BAG ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

LEDIL

ASSEMBLY 1 POS MM (D)/ PE BAG ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	FP16611_LISA3CSP-WWW-PIN

Color	Clear
For Use With/Related Manufacturer	Seoul, Nichia, Samsung, Cree
Lens Size [diameter]	10 mm
Material	Acrylic
Mounting Type	Snap-In
Number of LEDs	1
Optical Pattern	Wide
Type	Lens With Holder
Viewing Angle [Max]	66 °
Viewing Angle [Min]	62 °

ASSEMBLY 1 POS MM (D)/ PE BAG ROHS COMPLIANT: YES

Part	Number of LEDs	Optical Pattern	Mounting Type	Viewing Angle [Max]	Viewing Angle [Min]	For Use With/Related Manufacturer	Lens Size [diameter]	Type	Color	Material
LEDIL FP16611_LISA3CSP-WWW-PIN	1	Wide	Snap-In	66 °	62 °	Cree, Nichia, Samsung, Seoul	10 mm	Lens With Holder	Clear	Acrylic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lens With Holder Clear 62° ~ 66° Wide Snap-In
