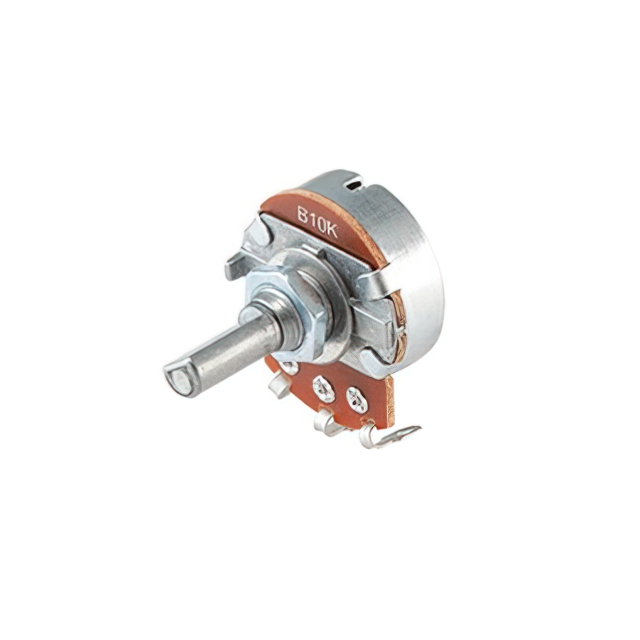

PTN24A-B1020DB
ActiveSame Sky (Formerly CUI Devices)
POT 10K OHM 1/2W CARBON LINEAR
PTN24A-B1020DB
ActiveSame Sky (Formerly CUI Devices)
POT 10K OHM 1/2W CARBON LINEAR
Description
General part information
PTN24A-B1020DB
10k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Carbon 0.5W, 1/2W Solder Lug
Technical Specifications
Parameters and characteristics for this part
| Specification | PTN24A-B1020DB |
|---|---|
| Actuator Diameter | 0.236 in |
| Actuator Length | 0.787 in |
| Actuator Type | Flatted |
| Adjustment Type | User Defined |
| Built in Switch | None |
| Bushing Thread | M8 x 0.75 |
| Bushing Thread Diameter | 8 mm |
| Bushing Thread Pitch | 0.75 mm |
| Mounting Type | Panel Mount |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 10 kOhm |
| Resistive Material | Carbon |
| Rotation | 305 ° |
| Size - Body Diameter | 0.945 in |
| Size - Body Shape | Round |
| Taper | Linear |
| Termination Style | Solder Lug |
| Tolerance | 20 % |
