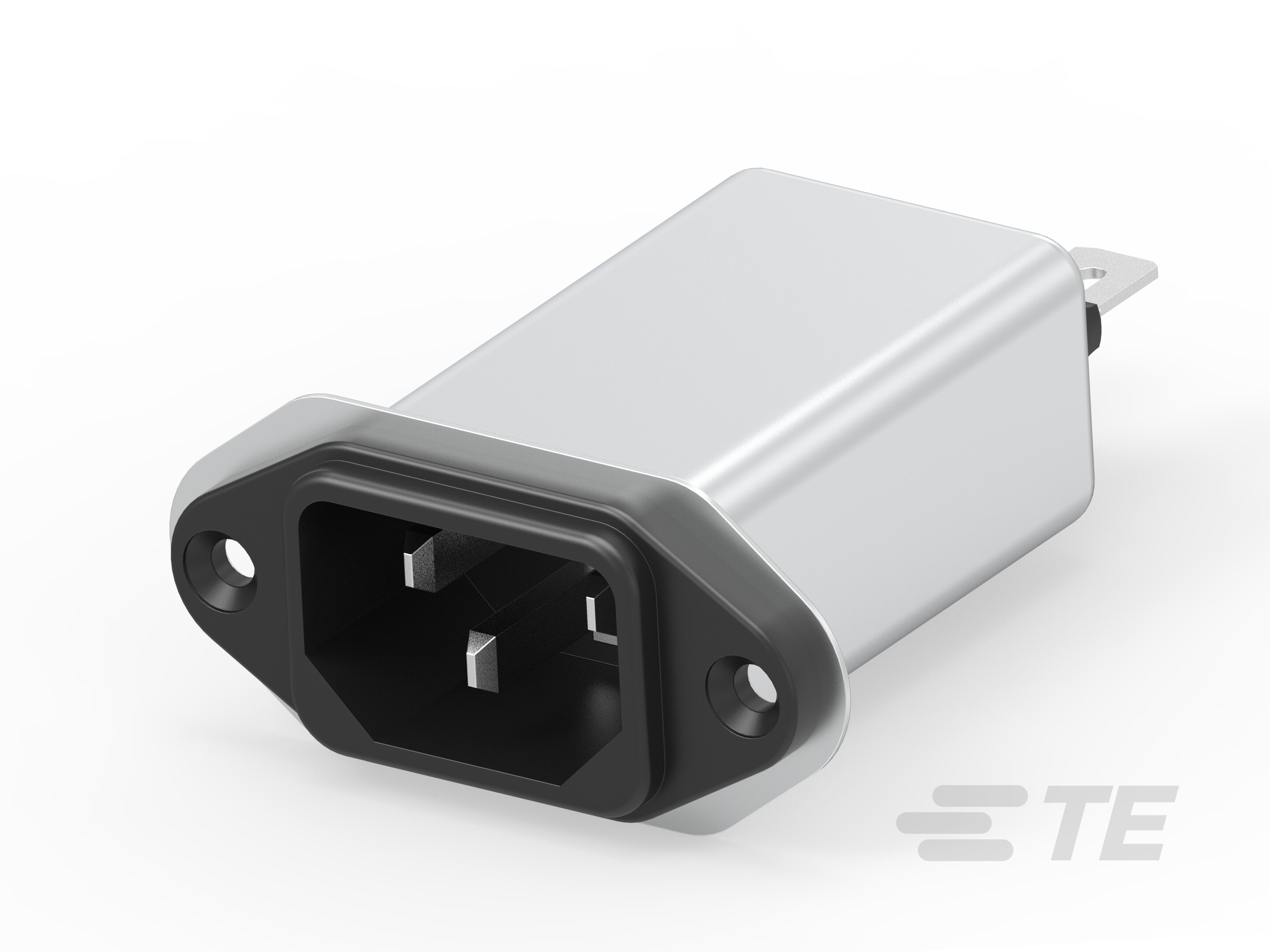

Specification	FN9233EU-15-06HI

Accomodates a Fuse	No
Approval Agency	CSA, ENEC, UL
Connector Style	IEC 320-C16
Connector Type	Male Blades, Receptacle
Current Rating - Filter	15 A
Features	Earth Line Choke, Front or Rear Side Mount
Filter Application	Commercial
Filter Subtype	EMI, RFI
Filter Type	Filtered
Ingress Protection	IP40
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Flange
Number of Positions	3
Panel Cutout Length	28.5 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	21.5 mm
Termination	Quick Connect
Termination Probe Tip OD	0.25 in

Schaffner FN9233 Series

...

Part	Connector Type	Material Flammability Rating	Connector Style	Current Rating - Filter	Mounting Type	Termination Probe Tip OD	Termination	Filter Type	Filter Subtype	Filter Application	Approval Agency	Number of Positions	Panel Thickness (Min)	Panel Thickness (Max)	Accomodates a Fuse	Panel Cutout Width	Panel Cutout Shape	Panel Cutout Length	Ingress Protection	Features
TE Connectivity AMP Connectors FN9233S1R-12-06	Male Blades Receptacle	UL94 V-2	IEC 320-C14	12 A	Panel Mount Snap-In	0.25 in	Quick Connect	Filtered	EMI RFI	Commercial	CQC CSA ENEC UL	3	0.028 in	0.059 in	No	21.9 mm	Rectangular	28.5 mm	IP40	Bleed Resistor
TE Connectivity AMP Connectors FN9233ES-3-06	Male Blades Receptacle	UL94 V-2	IEC 320-C14	3 A	Panel Mount Snap-In	0.25 in	Quick Connect	Filtered	EMI RFI	Commercial	CQC CSA ENEC UL	3	0.028 in	0.059 in	No	20.8 mm	Rectangular	29.4 mm	IP40	Earth Line Choke
TE Connectivity AMP Connectors FN9233ES1B-3-06	Male Blades Receptacle	UL94 V-2	IEC 320-C14	3 A	Panel Mount Snap-In	0.25 in	Quick Connect	Filtered	EMI RFI	Commercial Medical	CQC CSA ENEC UL	3	0.028 in	0.059 in	No	21.9 mm	Rectangular	28.5 mm	IP40	Bleed Resistor Earth Line Choke
TE Connectivity AMP Connectors FN9233S-8-06	Male Blades Receptacle	UL94 V-2	IEC 320-C14	8 A	Panel Mount Snap-In	0.25 in	Quick Connect	Filtered	EMI RFI	Commercial	CQC CSA ENEC UL	3	0.028 in	0.059 in	No	20.8 mm	Rectangular	29.4 mm	IP40
TE Connectivity AMP Connectors FN9233ES1B-6-06	Male Blades Receptacle	UL94 V-2	IEC 320-C14	6 A	Panel Mount Snap-In	0.25 in	Quick Connect	Filtered	EMI RFI	Commercial Medical	CQC CSA ENEC UL	3	0.028 in	0.059 in	No	21.9 mm	Rectangular	28.5 mm	IP40	Bleed Resistor Earth Line Choke
TE Connectivity AMP Connectors FN9233SR-3-06	Male Blades Receptacle	UL94 V-2	IEC 320-C14	3 A	Panel Mount Snap-In	0.25 in	Quick Connect	Filtered	EMI RFI	Commercial	CQC CSA ENEC UL	3	0.028 in	0.059 in	No	20.8 mm	Rectangular	29.4 mm	IP40	Bleed Resistor
TE Connectivity AMP Connectors FN9233U-6-06	Male Blades Receptacle	UL94 V-2	IEC 320-C14	6 A	Flange Panel Mount	0.25 in	Quick Connect	Filtered	EMI RFI	Commercial	CQC CSA ENEC UL	3			No	21.5 mm	Rectangular	28.5 mm	IP40	Front or Rear Side Mount
TE Connectivity AMP Connectors FN9233R-1-06	Male Blades Receptacle	UL94 V-2	IEC 320-C14	1 A	Flange Panel Mount	0.25 in	Quick Connect	Filtered	EMI RFI	Commercial	CQC CSA ENEC UL	3			No	21.5 mm	Rectangular	28.5 mm	IP40	Bleed Resistor Front or Rear Side Mount
TE Connectivity AMP Connectors FN9233UB-12-06	Male Blades Receptacle	UL94 V-2	IEC 320-C14	12 A	Flange Panel Mount	0.25 in	Quick Connect	Filtered	EMI RFI	Commercial Medical	CE CQC CSA ENEC UL	3			No	21.5 mm	Rectangular	28.5 mm	IP40	Front or Rear Side Mount
TE Connectivity AMP Connectors FN9233ESR-6-06	Male Blades Receptacle	UL94 V-2	IEC 320-C14	6 A	Panel Mount Snap-In	0.25 in	Quick Connect	Filtered	EMI RFI	Commercial	CQC CSA ENEC UL	3	0.028 in	0.059 in	No	20.8 mm	Rectangular	29.4 mm	IP40	Bleed Resistor Earth Line Choke
