63ET
ActiveEaton - Electronics Division
FUSE CARTRIDGE 63A 690VAC/500VDC
63ET
ActiveEaton - Electronics Division
FUSE CARTRIDGE 63A 690VAC/500VDC
Description
General part information
63ET

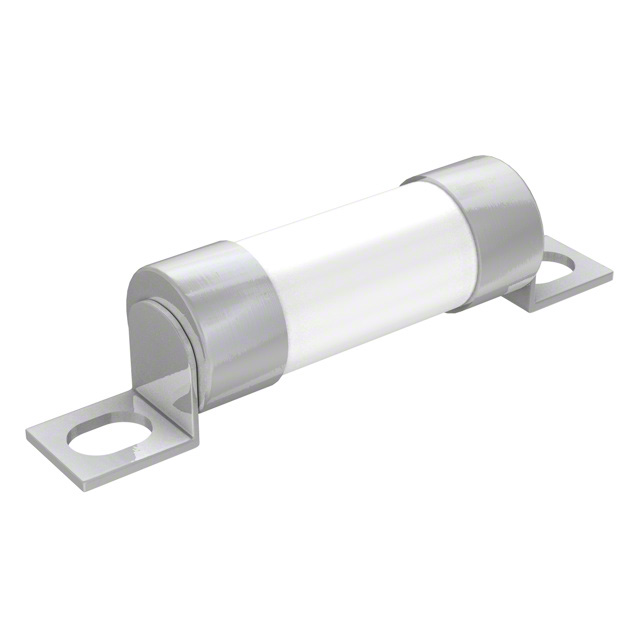

63A 690 VAC 500 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 63ET |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UR, CE |
| Breaking Capacity | 200 kA |
| Current Rating | 63 A |
| Fuse Type | Cartridge |
| Melting I²t | 135 |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 0.673 in |
| Size / Dimension Length | 1.89 in |
| Voltage Rating - AC | 690 V |
| Voltage Rating - DC | 500 V |
