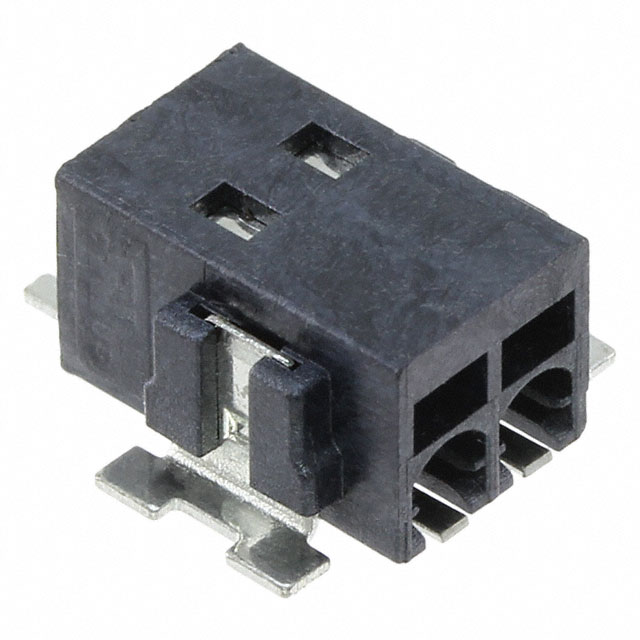

Specification	NQ0221000000G

Color	Black
Current	9 A
Housing Material	Liquid Crystal Polymer, LCP
Mating Orientation	Horizontal with Board
Mounting Type	Surface Mount
Number of Levels	1
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-40 °C
Pitch	0.157 in
Positions Per Level	2
Voltage	600 V
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	18 AWG
Wire Termination	Leg Spring, Screwless, Push-In Spring

NQ Series

Part	Current	Mating Orientation	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Voltage	Positions Per Level	Number of Levels	Pitch	Wire Termination	Mounting Type	Color	Plating	Contact Material	Housing Material	Operating Temperature (Max)	Operating Temperature (Min)	Features
McGill Microwave Systems NQ0241100000G	3 A	Horizontal with Board	26 AWG	22 AWG	150 V	2	1	0.118 in	Leg Spring Push-In Spring Screwless	Surface Mount	Natural	Tin Plated	Copper Alloy	LCP Liquid Crystal Polymer	130 °C	-40 °C
McGill Microwave Systems NQ0321100000G	9 A	Horizontal with Board	24 AWG	18 AWG	300 V	3	1	0.157 in	Leg Spring Push-In Spring Screwless	Surface Mount	Natural			LCP Liquid Crystal Polymer	130 °C	-45 °C
McGill Microwave Systems NQ0121000000G	9 A	Horizontal with Board	22 AWG	18 AWG	600 V	1	1		Leg Spring Push-In Spring Screwless	Surface Mount	Black			LCP Liquid Crystal Polymer	130 °C	-40 °C
McGill Microwave Systems NQ0221100000G	9 A	Horizontal with Board	24 AWG	18 AWG	300 V	2	1	0.157 in	Leg Spring Push-In Spring Screwless	Surface Mount	Natural			LCP Liquid Crystal Polymer	130 °C	-45 °C
McGill Microwave Systems NQ0321800000G	9 A	Horizontal with Board	22 AWG	18 AWG	300 V	3	1	0.157 in	Leg Spring Push-In Spring Screwless	Surface Mount	Gray			LCP Liquid Crystal Polymer	130 °C	-40 °C	Solder Retention
McGill Microwave Systems NQ0341100000G	3 A	Horizontal with Board	26 AWG	22 AWG	150 V	3	1	0.118 in	Leg Spring Push-In Spring Screwless	Surface Mount	Natural	Tin Plated	Copper Alloy	LCP Liquid Crystal Polymer	130 °C	-40 °C
McGill Microwave Systems NQ0600000000G	5 A	Horizontal with Board	24 AWG	19.5 AWG	150 V	6	1	0.098 in	Leg Spring Push-In Spring Screwless	Surface Mount	Black			LCP Liquid Crystal Polymer	130 °C	-45 °C	Solder Retention
McGill Microwave Systems NQ0201000000G	5 A	Horizontal with Board	24 AWG	19.5 AWG	150 V	2	1	0.098 in	Leg Spring Push-In Spring Screwless	Surface Mount	Black			LCP Liquid Crystal Polymer	130 °C	-45 °C
McGill Microwave Systems NQ0141100000G	3 A	Horizontal with Board	26 AWG	22 AWG	150 V	1	1		Leg Spring Push-In Spring Screwless	Surface Mount	Natural	Tin Plated	Copper Alloy	LCP Liquid Crystal Polymer	130 °C	-40 °C
McGill Microwave Systems NQ0400000000G	5 A	Horizontal with Board	24 AWG	19.5 AWG	150 V	4	1	0.098 in	Leg Spring Push-In Spring Screwless	Surface Mount	Black			LCP Liquid Crystal Polymer	130 °C	-45 °C	Solder Retention
