1577622-1
ActiveTE Connectivity AMP Connectors
TERMINAL, PEEK PIDG STRATO, 20AWG
1577622-1
ActiveTE Connectivity AMP Connectors
TERMINAL, PEEK PIDG STRATO, 20AWG
Description
General part information
1577622-1

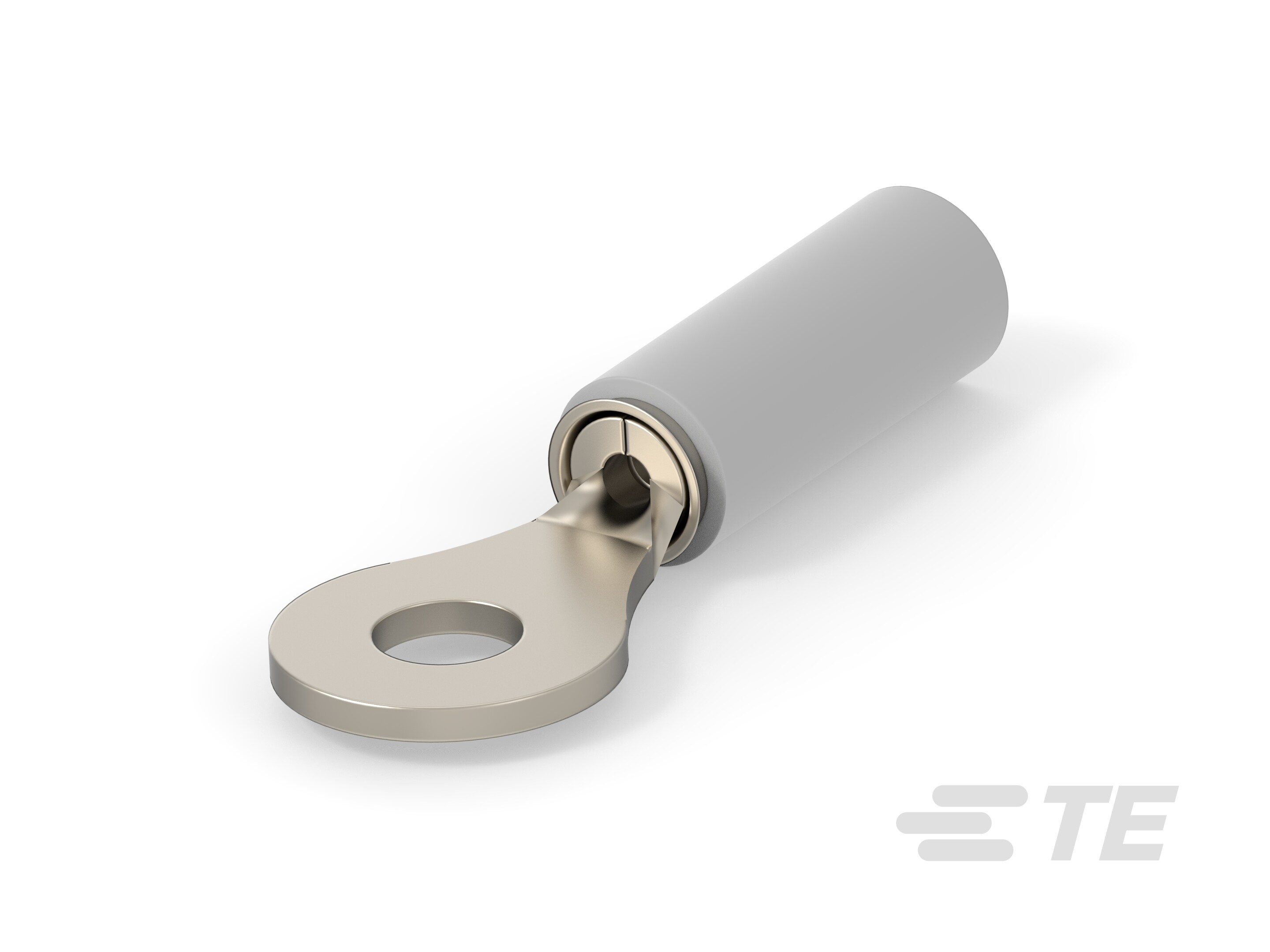

Closed Ring Tongue Terminal, 20 AWG, #4 Stud, 3.02 mm [.119 in] Stud Diameter, Closed Barrel, Straight, Nickel Plating, STRATO-THERM
Technical Specifications
Parameters and characteristics for this part
| Specification | 1577622-1 |
|---|---|
| Color | Gray |
| Contact Finish | Nickel |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Length - Overall | 0.833 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 4 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.032 in |
| Width - Outer Edges | 0.281 in |
| Wire Gauge | 20 AWG |
