320566
ActiveTE Connectivity AMP Connectors

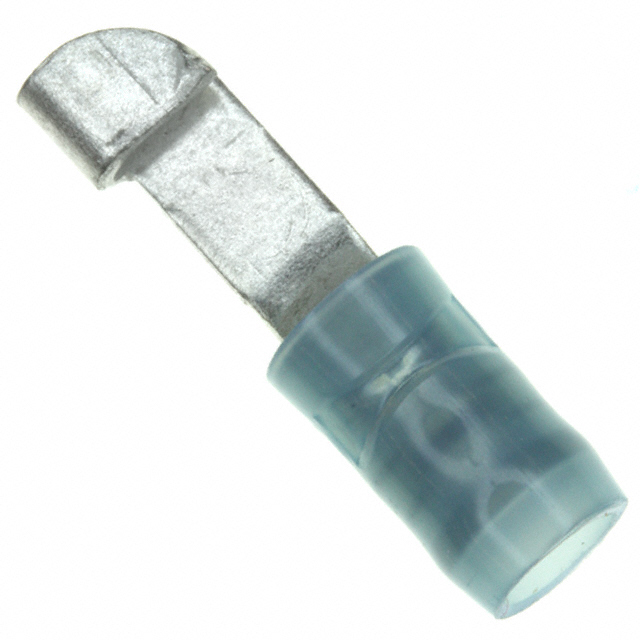

CONN KNIFE TERM 14-16 AWG BLUE
320566
ActiveTE Connectivity AMP Connectors
CONN KNIFE TERM 14-16 AWG BLUE
Description
General part information
320566
Tin, Wire Insulation Support, 16 – 14 AWG, 1.04 – 2.62 mm² Wire, 2.05 – 5.18 kcmil, Loose Piece, Partially Insulated, PIDG, Knife Disconnects
Technical Specifications
Parameters and characteristics for this part
| Specification | 320566 |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Copper |
| Height Stacking (Mating) | 0.203 in |
| Insulation | Insulated |
| Insulation Diameter (Max) | 0.15 in |
| Insulation Diameter (Min) | 0.105 in |
| Length - Overall | 0.878 in |
| Material - Insulation | Polyamide, PA, Nylon |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
