Description
General part information

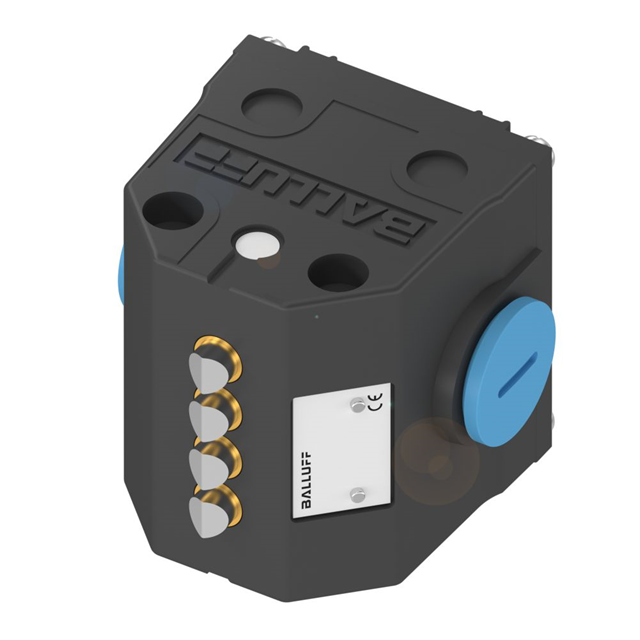

BNS01RP
Switch SPDT x 3 Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | BNS01RP |
|---|---|
| Actuator Type | Bevel Plunger |
| Circuit | SPDT x 3 |
| Current Rating | 5 A |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 816 gf |
| Operating Position (Length) | 0.512 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -5 °C |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
