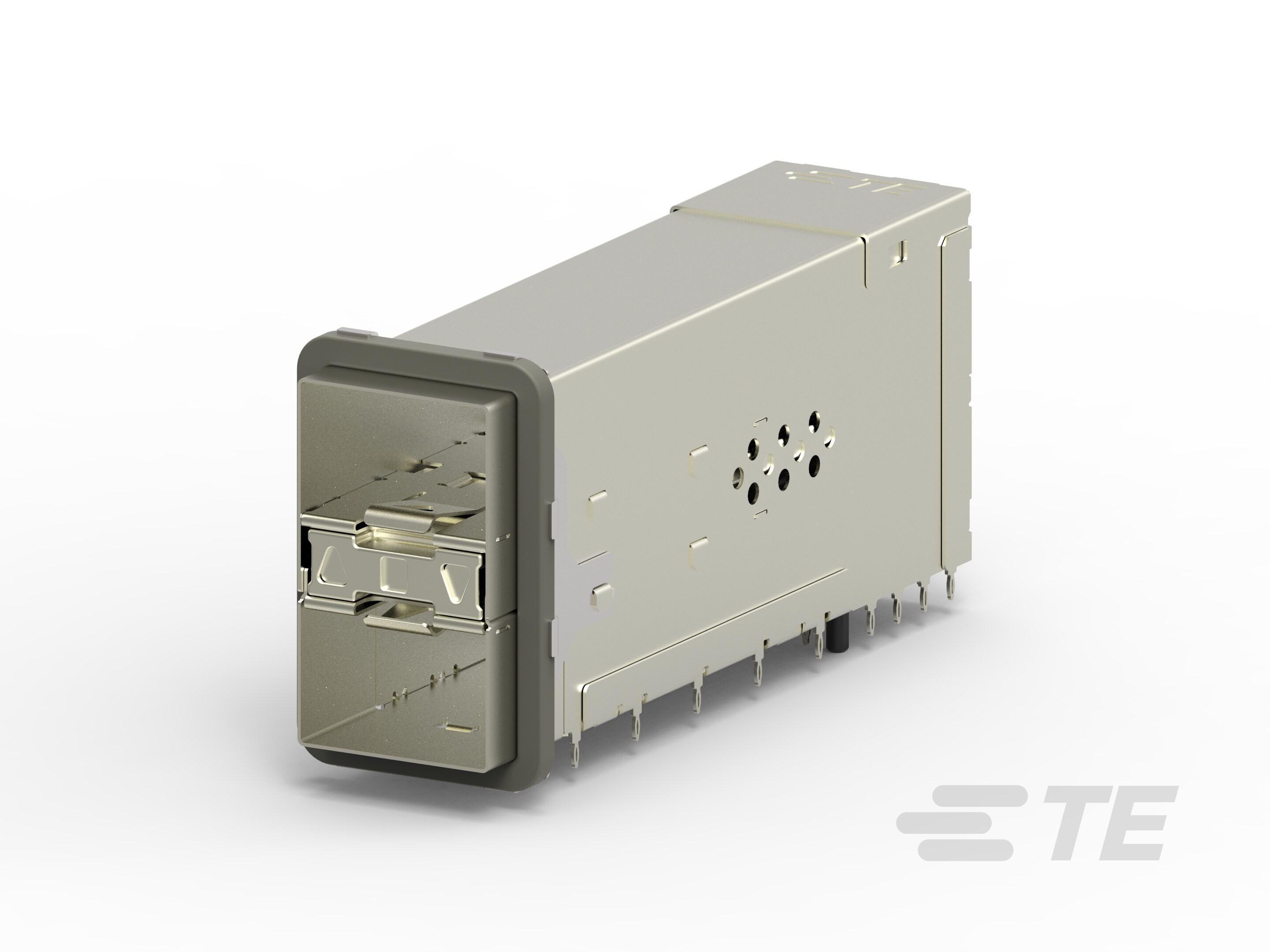

zSFP+ STACKED 2X1 RECEPTACLE ASSEMBLY-1-2198318-7

1-2198318-7

Active
TE Connectivity AMP Connectors

ZSFP+ STACKED 2X1 RECEPTACLE ASSEMBLY

Find alt
zSFP+ STACKED 2X1 RECEPTACLE ASSEMBLY-1-2198318-7

1-2198318-7

Active
TE Connectivity AMP Connectors

ZSFP+ STACKED 2X1 RECEPTACLE ASSEMBLY

Find alt

Description

General part information

1-2198318-7

zSFP+ Stacked (SFP28), Cage Assembly with Integrated Connector, .8mm [.032in] Centerline, Signal

Technical Specifications

Parameters and characteristics for this part

Specification1-2198318-7
Connector Pin Configuration (Columns)1 pins
Connector Pin Configuration (Rows)2 pins
Connector StyleReceptacle with Cage, Ganged
Connector TypezSFP+
Contact FinishGold-Palladium, Gold
FeaturesEMI Shielded, Light Pipe, Board Guide
Mounting TypeThrough Hole, Right Angle
Number of Positions (Columns)20
Number of Positions (Rows)2
Number of Positions (Total)40
TerminationPress-Fit
