NSYSFX20650
ActiveSCHNEIDER ELECTRIC
ENCLOSURE S STL 78.74"LX23.62"W
NSYSFX20650
ActiveSCHNEIDER ELECTRIC
ENCLOSURE S STL 78.74"LX23.62"W
Description
General part information
NSYSFX20650

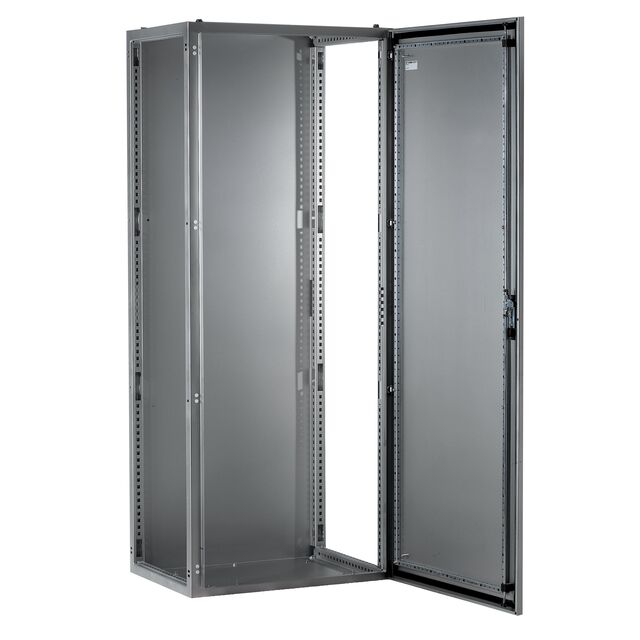

Enclosure Metal, Stainless Steel Gray Cover Included, Hinged Door 78.740" L x 23.622" W (2000.00mm x 600.00mm) X 19.685" (500.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYSFX20650 |
|---|---|
| Area (L x W) | 1860 in² |
| Color | Gray |
| Container Type | Enclosure |
| Design | Hinged Door, Cover Included |
| Height | 19.685 in |
| Material | Stainless Steel, Metal |
| Ratings | NEMA 4X, IP66 |
| Size / Dimension Length | 78.74 in |
| Size / Dimension Width | 23.622 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
