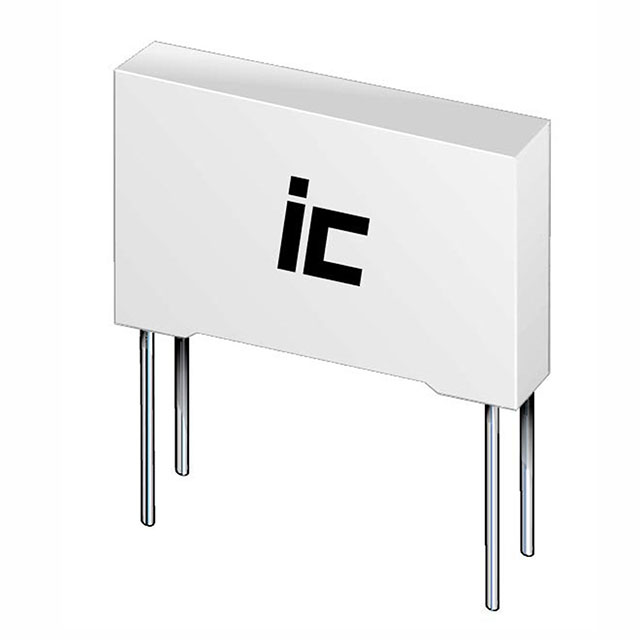

405PHB600K2J
ActiveCornell Dubilier Knowles
CAP FILM 4UF 10% 600VDC RADIAL
405PHB600K2J
ActiveCornell Dubilier Knowles
CAP FILM 4UF 10% 600VDC RADIAL
Description
General part information
405PHB600K2J
4 µF Film Capacitor 350V 600V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 405PHB600K2J |
|---|---|
| Applications | Switching, High Frequency |
| Capacitance | 4 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 3.6 mOhm |
| Height - Seated (Max) | 1.457 in |
| Lead Spacing | 1.476 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 1.673 in |
| Size / Dimension Width | 1.102 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 350 VAC |
| Voltage Rating - DC | 600 V |
