3-101-785
ActiveSCHURTER Inc.

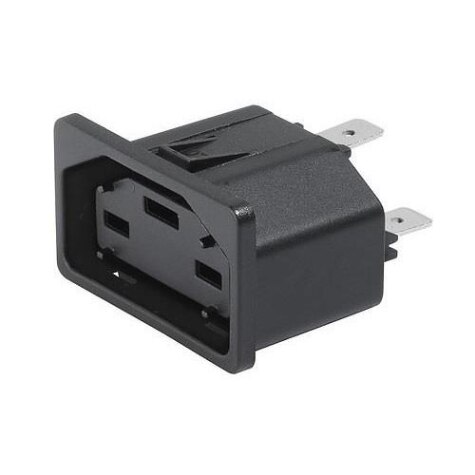

AC POWER ENTRY MODULES GS21 CONNECTOR OUTLET 400VDC 2.6KW
3-101-785
ActiveSCHURTER Inc.
AC POWER ENTRY MODULES GS21 CONNECTOR OUTLET 400VDC 2.6KW
Description
General part information
3-101-785
AC POWER ENTRY MODULES GS21 CONNECTOR OUTLET 400VDC 2.6KW
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-101-785 |
|---|---|
| Approval Agency | VDE, UL |
| Connector Type | Receptacle, Female Sockets |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 3 |
| Panel Cutout Length | 22.6 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 39.6 mm |
| Panel Thickness | 0.059 in |
| Termination | Quick Connect |
| Termination Probe Tip OD | 0.25 in |
