LR14XWA/BL4X2
UnknownPanasonic Energy
BATTERY PACK ALKALINE 12V C
LR14XWA/BL4X2
UnknownPanasonic Energy
BATTERY PACK ALKALINE 12V C
Description
General part information

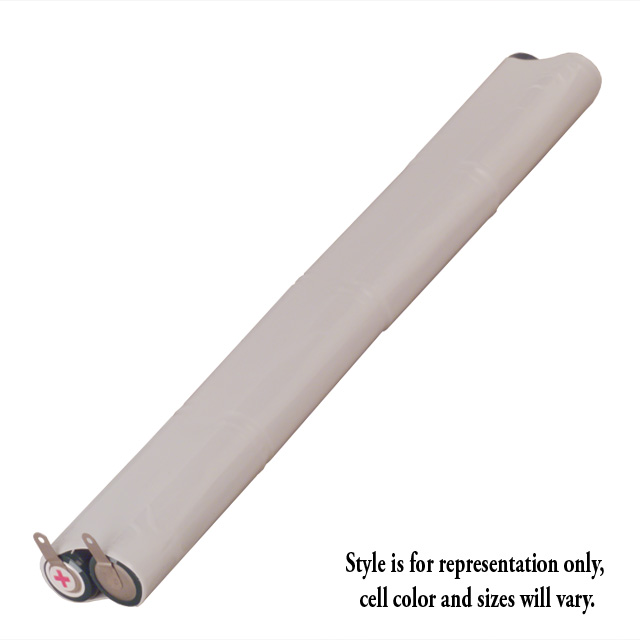

LR14XWA/BL4X2
C 12 V Alkaline Manganese Dioxide Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | LR14XWA/BL4X2 |
|---|---|
| Battery Cell Size | C |
| Battery Chemistry | Alkaline Manganese Dioxide |
| Number of Cells | 8 |
| Rechargeability | No |
| Size / Dimension Height | 7.87 in |
| Size / Dimension Length | 2.06 in |
| Size / Dimension Width | 1.03 in |
| Structure | Front to Back |
| Structure Cells | 4 |
| Structure Rows | 2 |
| Termination Style | Solder Tab |
| Voltage - Rated | 12 VAC |
| Weight | 544.3 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
