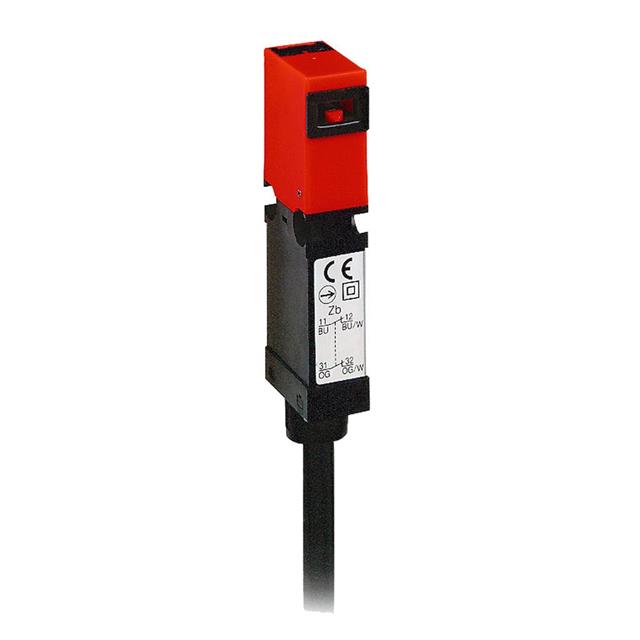

XCSMP70L5
ActiveSCHNEIDER ELECTRIC
SAFETY INTERLOCK SWITCH, PREVENTA XCS SERIES, DPST-NC, SPST-NO, CABLE, 120 V, 1.5 A, IP67
XCSMP70L5
ActiveSCHNEIDER ELECTRIC
SAFETY INTERLOCK SWITCH, PREVENTA XCS SERIES, DPST-NC, SPST-NO, CABLE, 120 V, 1.5 A, IP67
Description
General part information
XCSMP70L5
SAFETY INTERLOCK SWITCH, PREVENTA XCS SERIES, DPST-NC, SPST-NO, CABLE, 120 V, 1.5 A, IP67
Technical Specifications
Parameters and characteristics for this part
| Specification | XCSMP70L5 |
|---|---|
| Actuator Type | Panel Disconnect |
| Approval Agency | UL, CSA, cUL |
| Circuit | 3PST-2NC/1NO |
| Current Rating | 550 mA, 1.5 A |
| Holding Force | 816 gf |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Cable Leads |
| Type | Non-Locking |
| Voltage Rating (AC) | 120 VAC |
| Voltage Rating (DC) | 125 VDC |
