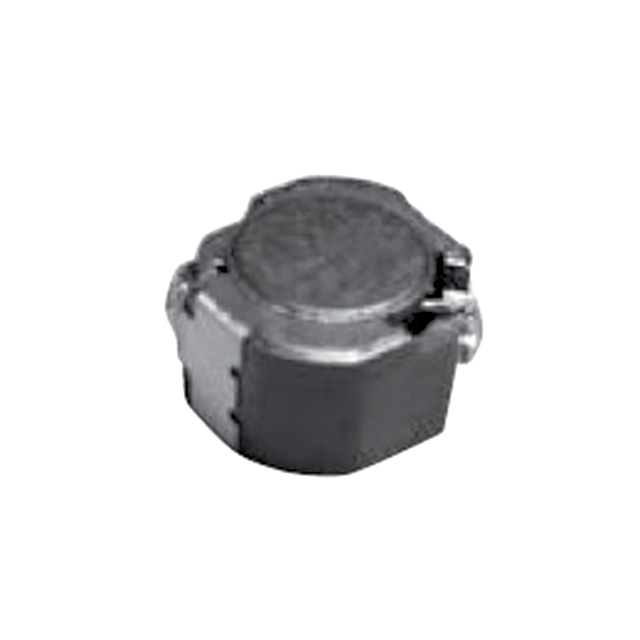

CDRH70D45BT150NP-4R7NC
ActiveSumida America Components Inc.
FIXED IND 4.7UH 6.2A 14MOHM SMD
CDRH70D45BT150NP-4R7NC
ActiveSumida America Components Inc.
FIXED IND 4.7UH 6.2A 14MOHM SMD
Description
General part information
CDRH70D45BT150NP-4R7NC
4.7 µH Shielded Inductor 6.2 A 14mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CDRH70D45BT150NP-4R7NC |
|---|---|
| Current - Saturation (Isat) | 4.2 A |
| Current Rating | 6.2 A |
| DC Resistance (DCR) | 14 mOhm |
| Height - Seated (Max) | 0.189 in |
| Inductance | 4.7 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.303 in |
| Size / Dimension Width | 0.287 in |
| Tolerance | 30 % |
