VR37000001104JR500
ActiveVishay Dale

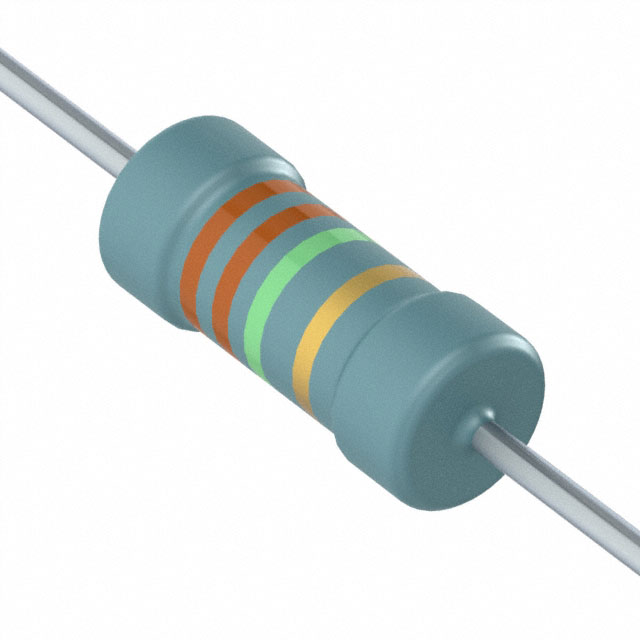

RES 1.1 MOHM 1/2W 5% AXIAL
VR37000001104JR500
ActiveVishay Dale
RES 1.1 MOHM 1/2W 5% AXIAL
Description
General part information
VR37000001104JR500
1.1 MOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial Automotive AEC-Q200, High Voltage, Pulse Withstanding Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | VR37000001104JR500 |
|---|---|
| Composition | Metal Film |
| Features | Automotive AEC-Q200, High Voltage, Pulse Withstanding |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 1.1 MOhm |
| Size / Dimension Diameter | 0.157 in |
| Size / Dimension Length | 0.354 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
