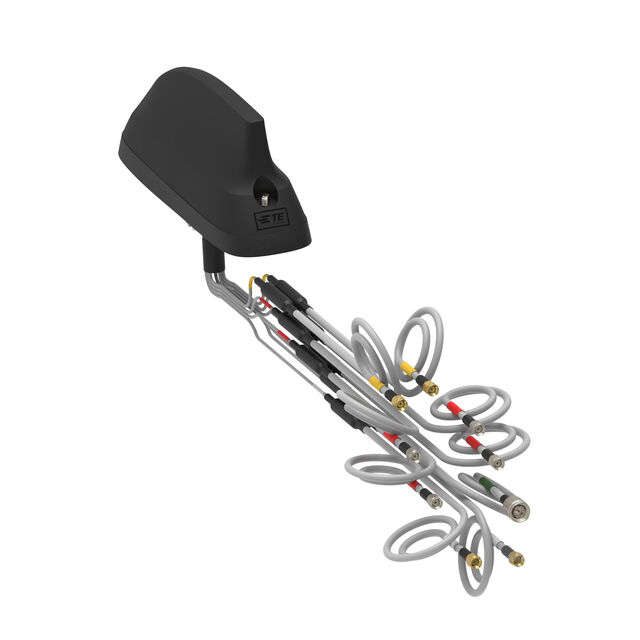

Specification	L000423-06

Antenna Type	Module
Applications	5G, LTE, GNSS, Wi‑Fi
Frequency (Center/Band)	1.18GHz, 2.45GHz, 6.05GHz, 1.58GHz, 3.871GHz, 1.56GHz, 1.6GHz
Frequency (Center/Band) - 1	2.45 GHz
Frequency (Center/Band) - 2	1.18 GHz
Frequency (Center/Band) - 3	1.56 GHz
Frequency (Center/Band) - 4	1.58 GHz
Frequency (Center/Band) - 5	1.6 GHz
Frequency (Center/Band) - 6	3.871 GHz
Frequency (Center/Band) - 7	6.05 GHz
Frequency Group	Wide Band
Frequency Range (Band 1) Maximum	2.5 GHz
Frequency Range (Band 1) Minimum	617 MHz
Frequency Range (Band 2) Maximum	7.125 GHz
Frequency Range (Band 2) Minimum	2.4 GHz
Frequency Range (Band 3) Maximum	7.2 GHz
Frequency Range (Band 3) Minimum	4.9 GHz
Mounting Type	Panel Mount
Number of Bands	7
RF Family/Standard	Cellular, Navigation, WiFi
Termination	TNC Male (1), RP-SMA Male (4), SMA Male (4)
Termination Count (SMA Male)	4
Termination Count (TNC Male)	1
Termination Type	SMA Male, TNC Male, RP-SMA Male
