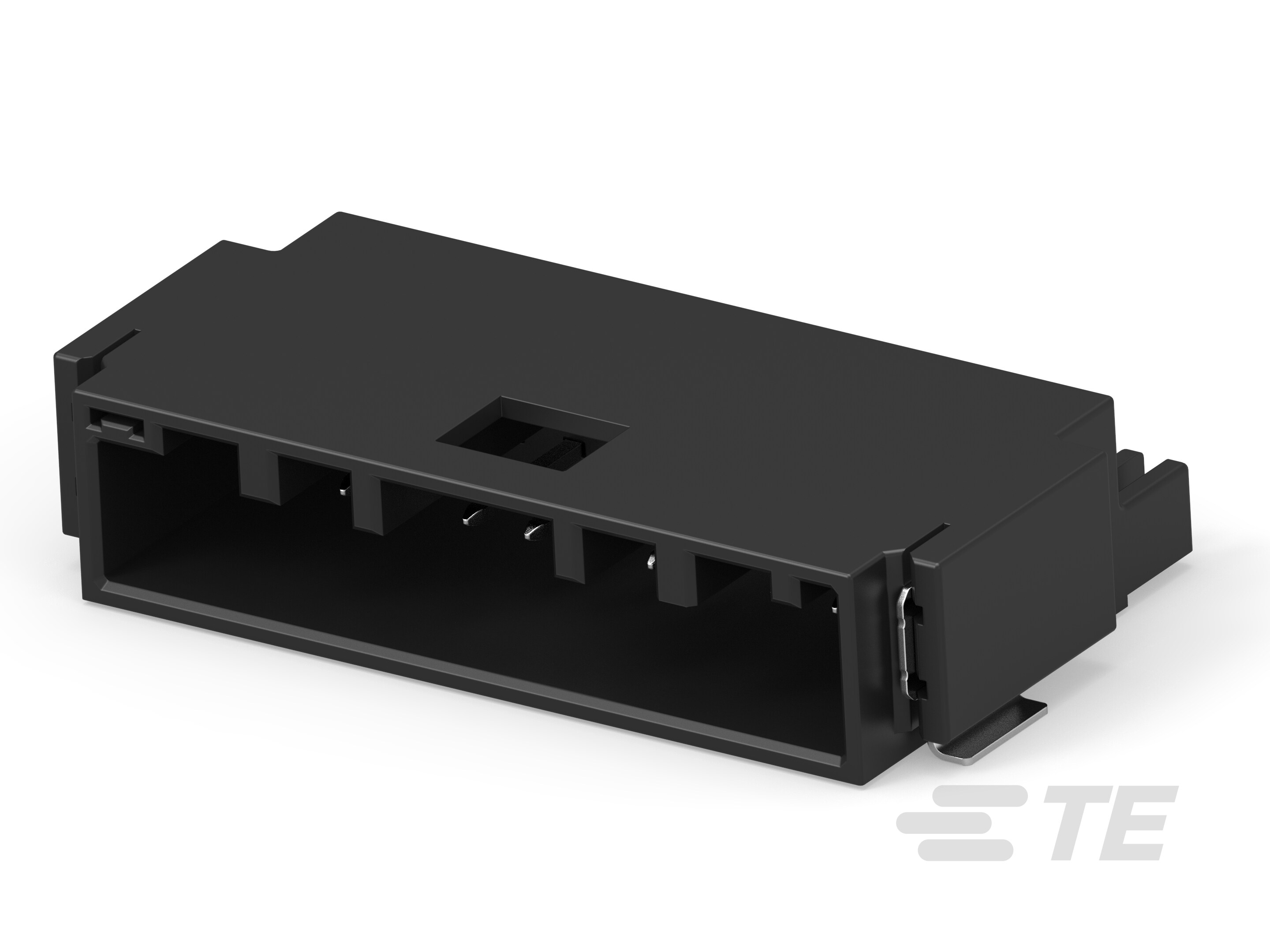

PIN HEADER, BLACK, X KEY, POWER, SIGNAL, WIRE-TO-BOARD, 1.8 MM, 1 ROWS, 10 CONTACTS
1-2834659-0
ActiveTE Connectivity AMP Connectors
PIN HEADER, BLACK, X KEY, POWER, SIGNAL, WIRE-TO-BOARD, 1.8 MM, 1 ROWS, 10 CONTACTS
Description
General part information
1-2834659-0
PCB Mount Header, Right Angle, Wire-to-Board, 10 Position, 1.8 mm [.072 in] Centerline, Tin (Sn), Surface Mount, Power & Signal, Black, Tape & Reel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2834659-0 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 3 A |
| Fastening Type | Push-Pull |
| Features | Solder Retention |
| Insulation Color | Black |
| Insulation Height | 0.228 in |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.071 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 125 V |
