XFL05K-02-0000-0B0B0A0E2
ActiveCreeLED, Inc.

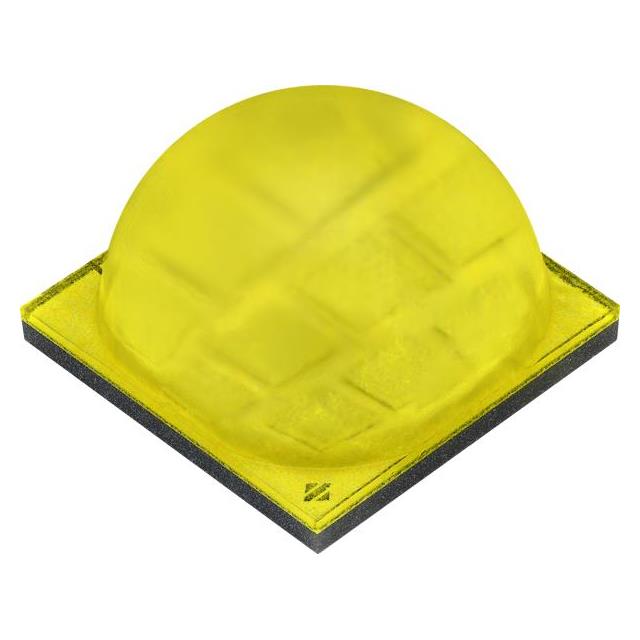

XLAMP XFL05K GEN 1 LIGHT EMITTIN
XFL05K-02-0000-0B0B0A0E2
ActiveCreeLED, Inc.
XLAMP XFL05K GEN 1 LIGHT EMITTIN
Description
General part information
XFL05K-02-0000-0B0B0A0E2
LED Lighting -
Technical Specifications
Parameters and characteristics for this part
| Specification | XFL05K-02-0000-0B0B0A0E2 |
|---|---|
| CCT (K) | 5700 K |
| Color | Cool, White |
| CRI (Color Rendering Index) | 70 |
| Current - Max | 10 A |
| Current - Test | 1.4 A |
| Height - Seated (Max) | 0.182 in |
| Lumens/Watt | 222 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2828 (7070 Metric) |
| Package Name | 2828 |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.276 in |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 5.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
