CD4000AK
ActiveON Semiconductor
IC GATE NOR 2CH 3-INP 14CFP
CD4000AK
ActiveON Semiconductor
IC GATE NOR 2CH 3-INP 14CFP
Description
General part information
CD4000AK
NOR Gate IC 2 Channel 14-CFP
Technical Specifications
Parameters and characteristics for this part
| Specification | CD4000AK |
|---|---|
| Current - Quiescent (Max) | 2 µA |
| Logic Type | NOR Gate |
| Max CL | 15 pF |
| Max Propagation Delay | 65 ns |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Number of Inputs | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |

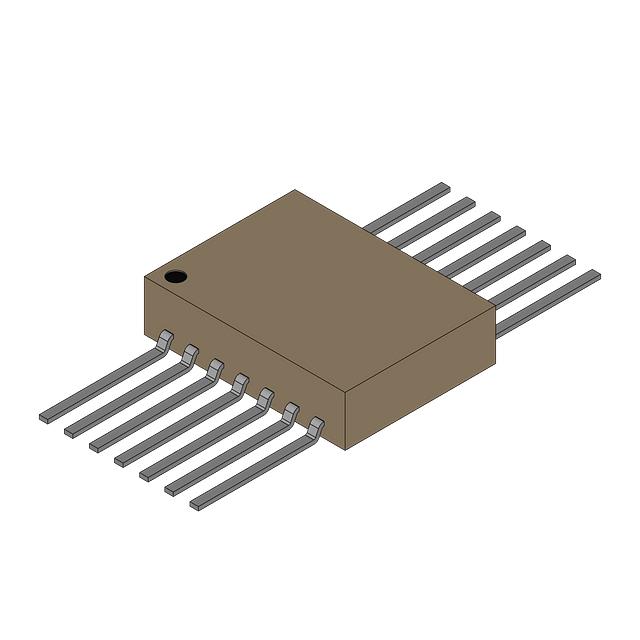

| Package / Case | 14-CFlatPack |
| Package Name | 14-CFP |
| Voltage - Supply (Maximum) | 12 V |
| Voltage - Supply (Minimum) | 3 V |
