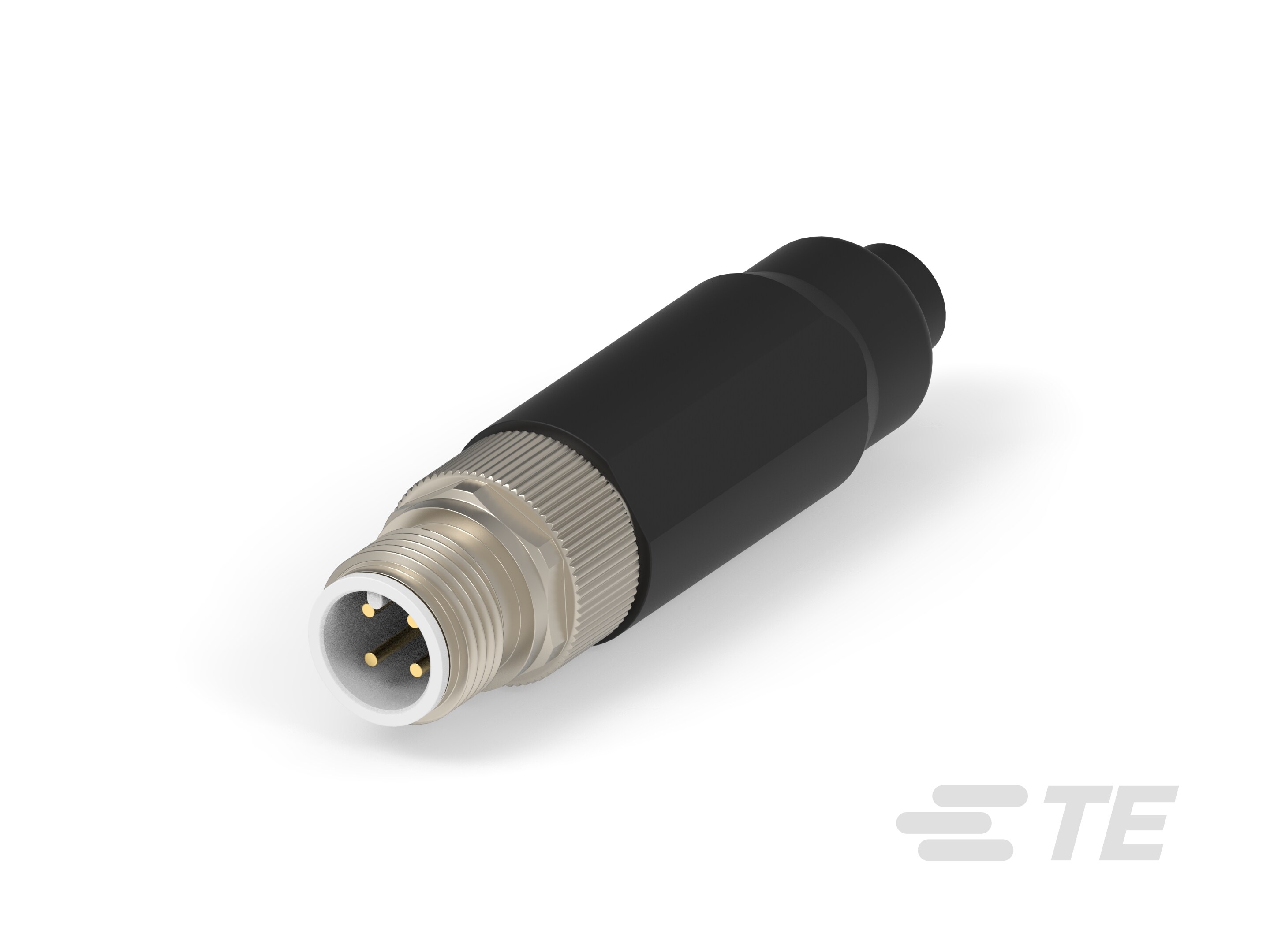

M12 D-M-4, CRIMP, CAT5 RADOX 6.6MM, H&S-1-2823445-1

1-2823445-2

NRND
TE Connectivity AMP Connectors

M12 D-M-4, CRIMP, CAT 5 RADOX 7.3MM, H&S

Find alt
M12 D-M-4, CRIMP, CAT5 RADOX 6.6MM, H&S-1-2823445-1

1-2823445-2

NRND
TE Connectivity AMP Connectors

M12 D-M-4, CRIMP, CAT 5 RADOX 7.3MM, H&S

Find alt

Description

General part information

1-2823445-2

4 Position Circular Connector, Cable-to-Cable, Sealable, Wire & Cable, Signal, Cable Mount (Free-Hanging), Reverse Gender, Plastic, M12 Connector

Technical Specifications

Parameters and characteristics for this part

Specification1-2823445-2
ColorSilver
Connector TypeMale Pins, Plug
Contact Finish - MatingGold
Current Rating4 A
Fastening TypeThreaded
FeaturesBackshell
Ingress Protection DescriptionWaterproof, Dust Tight
Ingress Protection IP RatingIP67
Material Flammability RatingUL94 V-0
Mounting TypeFree Hanging (In-Line)
Number of Positions4
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
OrientationD
Primary MaterialMetal
Shell FinishNickel
Shell MaterialBrass
Shell Size - InsertM12-4
ShieldingShielded
TerminationCrimp
Voltage Rating50 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
