Description
General part information
20698-034E-01

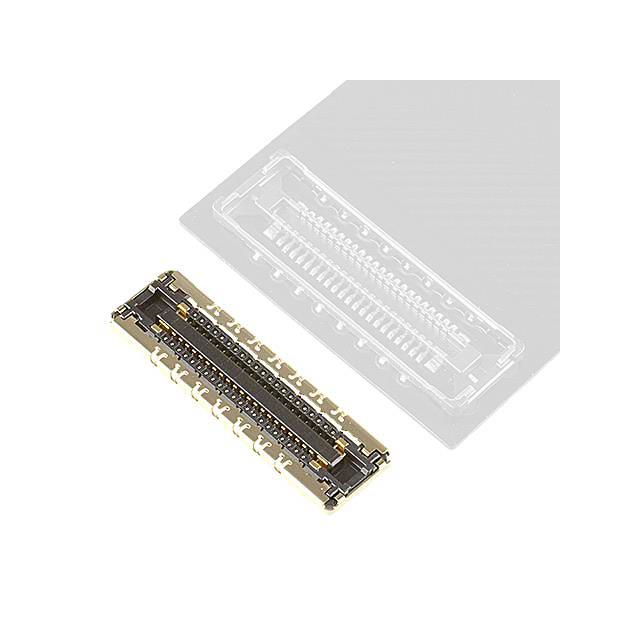

38 (34 + 4 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | 20698-034E-01 |
|---|---|
| Connector Type | Center Strip Contacts, Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 3.94 µin |
| Features | Shielded |
| Height Above Board | 0.023 in |
| Mated Stacking Height | 0.7 mm |
| Mounting Type | Surface Mount |
| Number of Positions (Normal) | 34 |
| Number of Positions (Power) | 4 |
| Number of Positions (Total) | 38 |
| Number of Rows | 2 |
| Pitch | 0.014 in |
