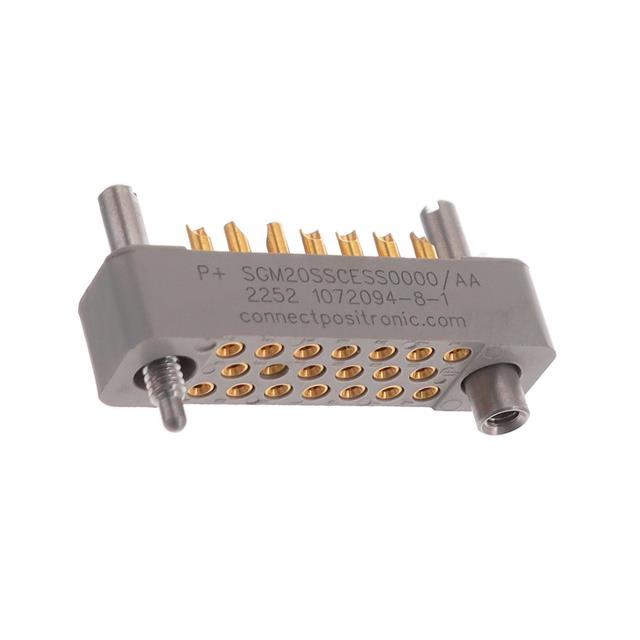

SGM20SSCESS0000/AA
ActiveMcGill Microwave Systems
RECT PWR CONN, RCPT, 20POS, SLDR CUP ROHS COMPLIANT: YES
SGM20SSCESS0000/AA
ActiveMcGill Microwave Systems
RECT PWR CONN, RCPT, 20POS, SLDR CUP ROHS COMPLIANT: YES
Description
General part information
SGM20SSCESS0000/AA
20 Connector Receptacle, Female Sockets Through Hole Gray
Technical Specifications
Parameters and characteristics for this part
| Specification | SGM20SSCESS0000/AA |
|---|---|
| Color | Gray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Features | Mating Guide |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature (Max) | 135 °C |
| Operating Temperature (Min) | -55 °C |
| Termination | Solder Cup |
| Voltage Rating | 250 V |
